NovaSensor Products

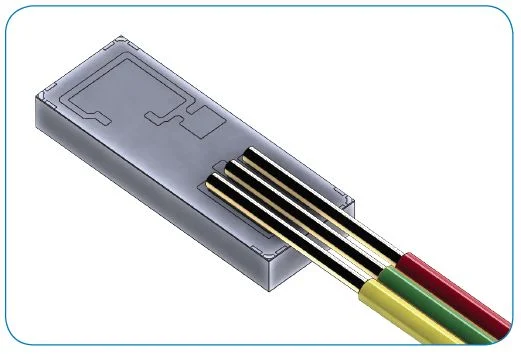

NovaSensor P330W Absolute Pressure Sensor is a Piezoresistive (PRT) Pressure Die, offering the same superior stability and sensitivity as in larger die, but in an extremely small footprint, making it ideal for invasive applications where small size is critical.

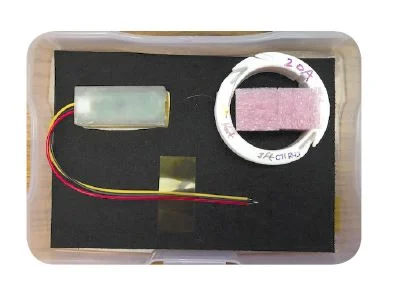

NovaSensor P330W Absolute Catheter Presure Sensor Evaluation Kit offers a simplified way to read calibrated output from the P330B Catheter Die. The kit consists of a sensor die soldered to trifilar wire and terminated to a printed circuit board (PCB). Users connect to kit via JST Connector or wires.

The NovaSensor NPR-101 Harsh Media Pressure Sensor is a silicon-based MEMS device using “Backside Absolute Pressure” technology designed for harsh media exposure, which eliminates the direct contact of the sensing circuitry with the applied media.

NovaSensor NPA Series of Surface-Mount Pressure Sensors is provided in a miniature size as a cost effective solution for applications that require calibrated performance. The sensor is intended for printed circuit board mounting and delivered in tape and reel form to simplify manufacturing handling.

NovaSensor NPI-19 Series of Low Pressure Sensors consists of media-isolated pressure sensors that are designed to operate in hostile environments while still providing the outstanding sensitivity, linearity and hysteresis of a silicon sensor.

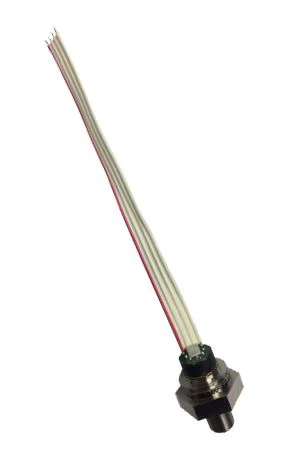

The NovaSensor NPI-19 Digital I2C Pressure Sensor incorporates IsoSensor technology with I2C interface protocols, which gives the OEM user the best in price and performance.

NovaSensor NPI-19 Series of Medium Pressure Sensors consists of current-driven, media-isolated pressure sensors, incorporating state-of-the-art IsoSensor technology. They are designed to operate in hostile environments while still providing the outstanding sensitivity, linearity and hysteresis of a silicon sensor.

The NovaSensor NPP-301 Series features silicon pressure sensors in surface mount packages.

The NovaSensor NPC-410 Series of Medium Pressure Sensors are solid state pressure sensors that provide a cost effective solution for applications that require long-term stability and high volume.

The NovaSensor NPH Series of Solid State Medium Pressure Sensors offer reliability at a low cost and small size. They are available in gauge, absolute and differential pressure versions.

NovaSensor NPH Series of Solid State Low Pressure Sensors consist of an integrated circuit silicon sensor chip housed in a standard TO-8 electrical package that is printed circuit board mountable. The user can provide standard signal conditioning circuitry to amplify the 100 mV output signal. The sensor is compatible with most non-corrosive gases and dry air. A laser-trimmed, thick-film resistor network on a hybrid ceramic substrate provides temperature compensation.

The NovaSensor NPI-12 Series of Stainless Steel Media Isolated Sensors provide a cost effective solution for applications that detect tube blockages and pump performance.

The NovaSensor NPI-15 Series of current-driven, media-isolated High Pressure Sensors are designed to operate in hostile environments, and yet give the outstanding sensitivity, linearity, and hysteresis of a silicon sensor. They incorporate state-of-the-art IsoSensor technology, which gives the OEM user the best in price and performance.

The NovaSensor NPC-1220 Series of Medium Pressure Sensors are solid state pressure sensors that provide a cost effective solution for applications that require calibrated performance over a wide temperature range.

The NovaSensor NPC-1210 Series of Low/Medium Pressure Sensors provides a cost effective solution for applications that require calibrated performance over a wide temperature range.

The NovaSensor NPC-100 Series of Disposable Medical Pressure Sensors is specifically designed for use in disposable medical applications.

The NovaSensor NPC-120 Series of Disposable Medical Pressure Sensors is specifically designed for use in disposable medical applications.

NovaSensor FMA Series of Filtration Air Restriction (FAR) Sensors accurately measure the pressure loss across a variety of air filtration devices utilizing high accuracy NPA piezoresistive technology ...

The NovaSensor NPI-15VC Series of voltage-compensated, media-isolated High Pressure Sensors offers the performance of our current-compensated sensors with the convenience of using a voltage supply. They are designed to operate in hostile environments and yet give the outstanding sensitivity, linearity, and hysteresis of a silicon sensor.

NovaSensor NPB 102 is an absolute pressure sensor with digital output for low power consumption and wide operating temperature range applications. Digital compensation of the signal offset, sensitivity, and non-linearity is accomplished via 26-bit internal digital signal processor (DSP) running a correction algorithm. Calibration coefficients are stored on-chip in highly reliable, nonvolatile, multi-time programmable (MTP) memory. It is available in two standard pressure ranges with custom pressure ranges available upon request.

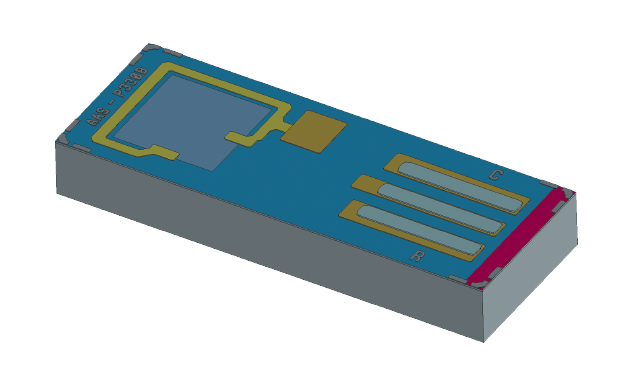

NovaSensor P330B Piezoresistive (PRT) Pressure Sensor Die offers the same superior stability and sensitivity as larger chips, but in an extremely small footprint for invasive applications where small size is critical. It has excellent measurement accuracy, which is ideal for demanding applications with restricted dimensional profiles, such as medical catheters and IC packages.

The NovaSensor P2701 is a high sensitivity, low pressure sensor die. It is usable over a wide pressure range with long-term stability and repeatability.

The NovaSensor P2705 Miniature Low Pressure Sensor Die utilizes four piezoresistors combined in a Wheatstone bridge circuit. When excited by constant voltage, the P2705 die produces a differential millivolt output signal directly proportional to the applied pressure. Available as gage, the P2705 sensor die also features high sensitivity, excellent overload capability, and small temperature hysteresis over a wide temperature range.

The NovaSensor P1905 Backside Absolute Pressure Sensor Die is a piezoresistive sensor die designed for absolute pressure measurements in aggressive (harsh) media.

The NovaSensor P330 Series of Absolute Pressure Sensor Die, or piezoresistive pressure die, offers the same superior stability and sensitivity as in larger chips, but in an extremely small footprint for invasive applications where small size is critical.

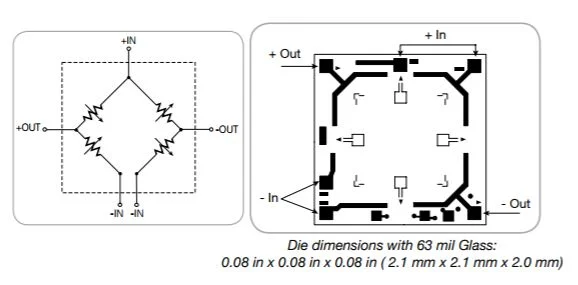

The NovaSensor P883 Medium and High Pressure MEMS Sensor Die utilizes four piezoresistors combined in Wheatstone bridge circuit. When excited by either constant voltage or constant current, the P883 Die produces a differential millivolt output signal directly proportional to the applied pressure. Available as gage (differential) or absolute, the P883 also features high sensitivity, excellent overload capability and small temperature hysteresis over a wide temperature range.

The NovaSensor P1300 Low Pressure Sensor Die are highly reliable, solid state pressure sensors, offered in a miniature 2.7 mm x 3.2 mm die

The NovaSensor P111 Medium Silicon Pressure Sensor Die are piezoresistive pressure sensors offered in a miniature 0.10 in x 0.12 in (2.7mm x 3.2 mm) die.

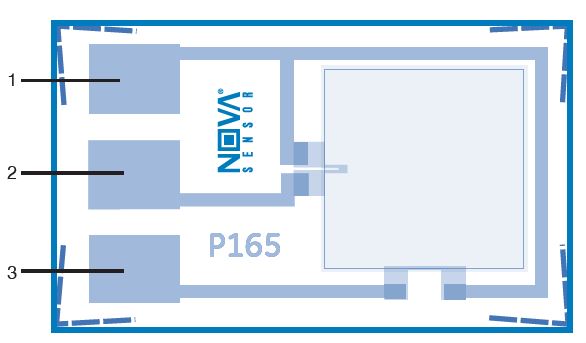

NovaSensor P165 Medical Silicon Absolute Pressure Sensor Die is a piezoresistive pressure sensor die offered in a miniature 1150 x 675 mm die that is small enough for three French catheters. The small size is made possible by NovaSensor’s proprietary Silicon Fusion Bonding (SFB) process. When excited with an AC or DC voltage source, the P165 produces a mV output that is proportional to input pressure. NovaSensor P165 is in a halfbridge design, where external resistors are needed to complete a full bridge configuration.

The NovaSensor P562 Medical Silicon Pressure Die is a piezoresistive pressure sensor that is specifically designed for medical applications. Low linearity errors, low input and low output impedance make the P562 and industry standard for disposable pressure sensor die.

NovaSensor P122 High Silicon Pressure Sensor Die are piezoresistive pressure sensors offered in a miniature 0.10 in x 0.10 in (2.5mm x 2.5 mm) die. When excited with 1.0 mA,the P122 produces a millivolt output that is proportional to input pressure. With NovaSensor’s SenStable® process, the P122 provide long-term stability and excellent repeatability.

The NovaSensor P112 Medium Pressure Sensor Die is a highly reliable solid state pressure sensor available in absolute, differential and gauge versions.

NovaSensor P162 Medical Silicon Gage Pressure Sensor Die are piezoresistive pressure sensor die offered in a miniature 1150 x 725 mm die that is small enough for three French catheters.

The NovaSensor P1302 Low Pressure Silicon Pressure Sensor Die is a high-sensitivity silicon piezoresistive pressure sensor die that is well-suited for measuring low-pressure.

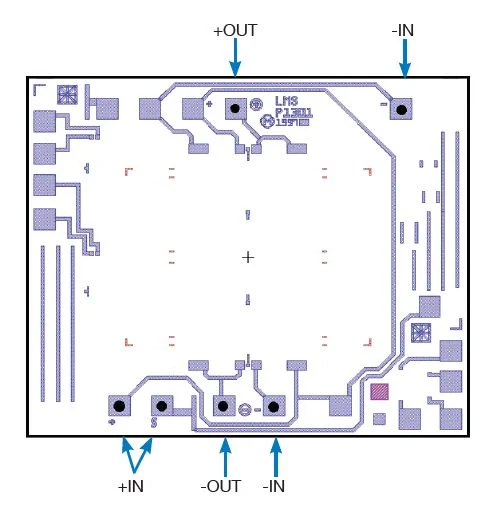

NovaSensor P1301 Low Pressure Silicon Pressure Sensor Die is a piezoresistive sensing element measuring 2.7mm x3.2mm (0.11in x 0.13in). When excited with constant voltage or constant current, it produces a milliVolt output proportional to input pressure. The die can be used in differential and gauge pressure sensors.

The NovaSensor P1602 Pressure Sensor Die is a piezoresistive pressure sensor offered in a miniature die. When excited with 1 mA constant current, the P1602 produces a millivolt output that is proportional to input pressure. The P1602 is available as an absolute pressure sensor, where the applied pressure is referenced to an internal vacuum-sealed within the die.

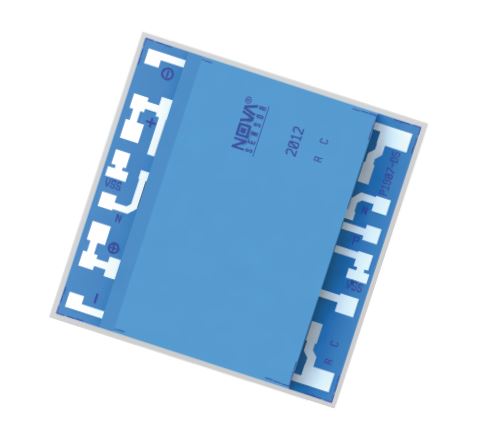

The NovaSensor PT1907 is a piezoresistive sensor die that is designed for combined pressure and temperature measurements in harsh media. Pressure is applied from the backside of the die, which eliminates direct contact between the topside of the sensor circuitry and the applied media. This allows PT1907 to measure pressure and temperature in aggressive liquids and gases.

The PT3512 piezoresistive sensor die is designed for pressure and temperature measurements using a single chip.

The PT3511 piezoresistive sensor die is designed for pressure and temperature measurements using a single chip.

The NovaSensor PT899 piezoresistive sensor die is designed for pressure and temperature measurements using a single chip. When excited by either constant voltage or constant current, a PT899 pressure sensor produces a differential millivolt output signal directly proportional to the applied pressure. With NovaSensor’s SenStable® process, PT899 die features excellent long-term stability and repeatability       (< 0.1% / year typ.). The on-chip temperature sensor powered by constant current allows for high accuracy measurement of temperature and for improvement of pressure measurement accuracy.

The NovaSensor PT2710 piezoresistive sensor die is designed for pressure and temperature measurements using a single chip. When excited by either constant voltage or constant current, a PT2710 pressure sensor produces a differential millivolt output signal directly proportional to the applied pressure. With NovaSensor’s SenStable® process, PT2710 die features excellent long-term stability and repeatability  (< 0.1% / year typical). The on-chip temperature sensor powered by constant current allows for high accuracy measurement of temperature and for improvement of pressure measurement accuracy.arity, offset, temperature coefficients and hysteresis.

The NovaSensor PT898 piezoresistive sensor die is designed for pressure and temperature measurements using a single chip. When excited by either constant voltage or constant current, a PT898 pressure sensor produces a differential millivolt output signal directly proportional to the applied pressure. With NovaSensor’s SenStable® process, PT898 die features excellent long-term stability and repeatability (< 0.1% / year typical). The on-chip temperature sensor powered by constant current allows for high accuracy measurement of temperature and for improvement of pressure measurement accuracy.
