P330W Absolute Catheter Pressure Sensor Evaluation Kit

NovaSensor P330W Absolute Catheter Presure Sensor Evaluation Kit offers a simplified way to read calibrated output from the P330B Catheter Die.

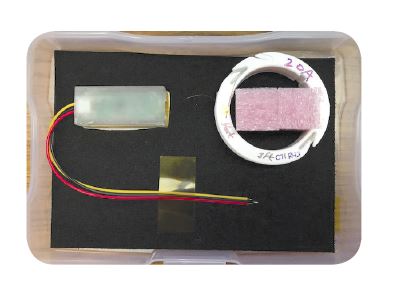

The kit consists of a sensor die soldered to trifilar wire and terminated to a printed circuit board (PCB). Users connect to kit via JST Connector or wires.

The P330B Piezoresistive (PRT) Pressure Sensor Die offers the same superior stability and sensitivity as in larger die, but in an extremely small footprint, this is ideal for invasive applications where small size is critical. Additionally, it has excellent measurement accuracy, which also makes it ideal for demanding applications with restricted dimensional profiles, such as medical catheters and IC packages. When excited with a DC voltage source, the P330W produces an mV output that is proportional to the applied pressure. The P330W employs a half-bridge design, which requires two external resistors to complete a full- bridge configuration. These resistors are included as part of the kit’s application circuit.

P330W Eval Kits are available in both, analog and digital output I²C configurations.

Analog Output Specifications	Symbol	Min	Typical	Max	Units
Supply Voltage	Vdd	4.75	5	5.25	V
Pressure Range	Prange	760		1210	mmHg A
Current Consumption	Ivdd		3		mA
Analog Pressure Output @Pmin*	AOUTmin		0.5		Volts
Analog Pressure Output @Pmax*	AOUTmax		4.5		Volts
Analog Output Accuracy	AACC		±6		mmHg
Proof Pressure	Pproof			TBD	mmHg A
Burst Pressure	Pburst			4500	mmHg A
Pressure = (112.5 * Vread) - 56.25	mmHg
*Calibrated at sea level ~ 760 mmHg, Pmin = 0mmHgG, Pmax = 450 mmHgG. Sensor output is ratiometric to power supply (10% to 90% of power supply)

Digital Output Specifications	Symbol	Min	Typical	Max	Units
Supply Voltage	Vdd	4.75	5	5.25	V
Pressure Range	Prange	760		1210	mmHg A
Current Consumption	Ivdd		4		mA
Digital Pressure Output @Pmin*	DOUTmin		1638		Counts
Digital Pressure Output @Pmax*	DOUTmax		14746		Counts
Digital Full Scale Span	DFS		13107		Counts
Pressure Resolution	-		14		Bits
Digital Output I2C Accuracy	DACC		±6		mmHg
Proof Pressure	Pproof			TBD	mmHg A
Burst Pressure	Pburst			4500	mmHg A
Pressure=(0.034332*Dcount) - 56.25	mmHg
*Calibrated at sea level ~ 760 mmHg, Pmin = 0mmHgG, Pmax = 450 mmHgG.

Part Number	Description
P330W-EVAL-D3	P330W Eval Kit, Digital Output
P330W-EVAL-A3	P330W Eval Kit, Analog Output
