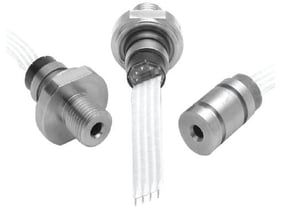

NPI Series Media-Isolated Sensors
The NPI Series of Media-Isolated Sensors are designed to operate in hostile environments while providing outstanding sensitivity, high linearity, and low hysteresis. The piezoresistive sensor chip is housed in a fluid-filled cylindrical cavity and isolated from the measured media by a stainless steel diaphragm and body. The modular design allows for various pressure port modules, which are hermetically welded to the die carrier. |

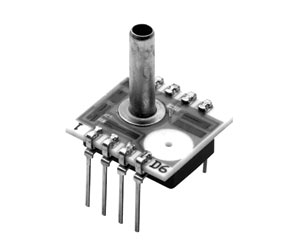

NPC Series Low and Medium Pressure Sensors The NPC Series of Low and Medium Pressure Sensors provide a cost-effective solution for applications that require compensated performance over a wide temperature range. Packaged in a dual in-line configuration, the NPC Series is intended for printed circuit board mounting. Optional pressure port and lead configurations give superior flexibility in low-profile applications where pressure connection orientation is critical. |
|

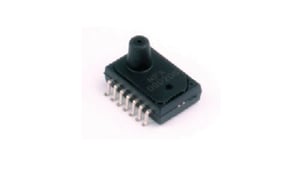

NPA Series Pressure Sensors
The NPA Series of Pressure Sensors is provided in a miniature size as a cost-effective solution for applications that require calibrated performance. Packaged in SOIC 14 pin surface mount, the NPA Series is offered in a range of pressure ratings starting from 2” H2O (500 Pa). Various port configurations are available to measure absolute, gauge, and differential pressure. Versions are offered with either analog or digital output. |

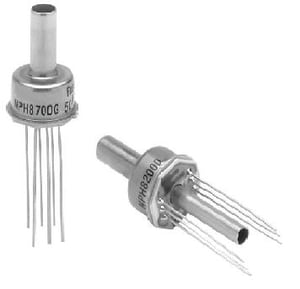

NPH Series Medium Pressure Sensors
|
.jpg?width=300&height=177&name=Amph%20images_NovaSensor_NPA_Surface_Mount_Pressure_Sensor%20(1).jpg)
MEMS Pressure Die Solutions
For customers who want complete control over packaging and signal conditioning, NovaSensor offers MEMS Pressure Sensor Die. Die products are typically delivered as sawn wafers on tape, but other options are available. Sensor Die are 100% electrically tested and visually inspected before delivery.

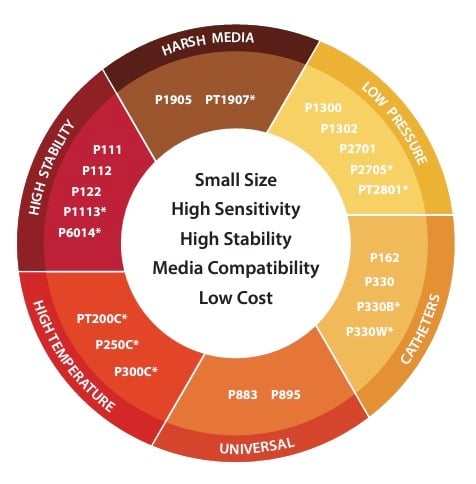

Manufactured Die Products
• P883 – Universal pressure die (5…15,000 psi)
• P111, P112 – Medium pressure die
• P122 – High pressure die
• P1905 – Backside absolute pressure die for aggressive environment (harsh media)
• P1300, P1302 – Low pressure die products
• P2701 – High-performance low pressure die
• P2705 – Small-size low pressure die
• P162, P330 – Catheter pressure die
• P330B – Catheter pressure die with solder bumps
Future Products
• PT1907 – Integrated pressure and temperature harsh media sensor die (DV samples)
• P330W – Catheter sub-assembly, including P330B sensor die with long wires (PV samples)
• PT200C – Pressure and temperature sensor die with operating temperature up to 200°C (DV samples)
• P250C, P300C – Pressure sensor die with operating temperature range up to 250°C, 300°C
• P1113 – High stability medium pressure die (PV samples)
• P6014 – High stability low pressure and temperature die (PV samples)
