CTTS-400328-F01
CTTS-303355-F01

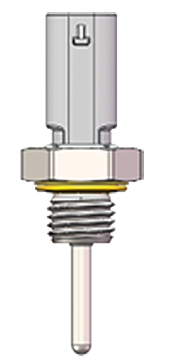

Thermometrics Automotive EGR Temperature Sensor is used to detect the operating temperature of the exhaust pipe to determine operating conditions and potential system failures. This sensor can be used in the exhaust gas and the low temperature sensor is used in the in-take air stream. Designed for fast response, optimized for thermal dissipation and suitable for high vibration and corrosive environments.


| Specifications | |
| Operating Temperature Range | -40°C to 300°C |
| Storage Temperature Range | -40°C to 100°C |
| Response Time | T63≤10 seconds |
| B Value |
Beta (25/50)°C=2240K ±1%. |
| R180 @ 180°C | R180℃=1.247KΩ±3% |
Please see datasheets for all information.
