Railway Sensors for Fluid Handling

Thermometrics Coolant Temperature Sensor (CTS) monitors the temperature of the coolant that is being pumped around the battery to cool the battery module of EV/PHEVs. If the battery module starts to overheat, the Coolant Temperature Sensor relays a signal to the Battery Management System (BMS). The BMS uses this information to prevent battery packs from any damage and maximize the performance.

Thermometrics Type JR NTC Chip Thermistors in Eyelet Tag are chip thermistors with insulated flexible wires and housed in an eyelet tag. They are suitable for surface temperature measurement. Typical applications include semi-conductor heatsinks and enclosure panels.

The Thermometrics Mid-Range Temperature Probe works in a variety of temperature applications in the appliance and industrial segment.

Thermometrics JS8845 Integrated Pipe Clip Surface Temperature Sensor is a clip-on temperature sensor that monitors the temperature of a fluid or gas that passes through a pipe or tubing circulation system ...

Thermometrics JS8746 Harsh Environment Temperature Sensor has been designed to address all aspects of temperature measurement for HVAC control systems in the container-ship market, in addition to industrial applications, such as compresors, condensing units, heat pumps, air conditioning. Employing materials and build standards that enhance the sensor’s ability to withstand water ingression and degradation by the marine environment, the sensor meets statutory requirements for temperature measurement and performance expectations.

Thermometrics JS8741 Integrated Pipe Clip Surface Temperature Sensor monitors the temperature of a fluid or gas that passes through a pipe or tubing circulation system ...

Thermometrics JRI Series of Noise Immune Ring Terminal Temperature Sensors consists of an NTC chip thermistor mounted in an eyelet tag for surface temperature measurement with a novel radio frequency (RF) decoupling function.

Thermometrics Inline Flow-Through Temperature Sensors monitor the temperature of a fluid that passes through it. A system control module receives this temperature reading and uses a control loop to control the overall system temperature. This could be engine temperature, heater temperature, industrial supply temperature, etc.

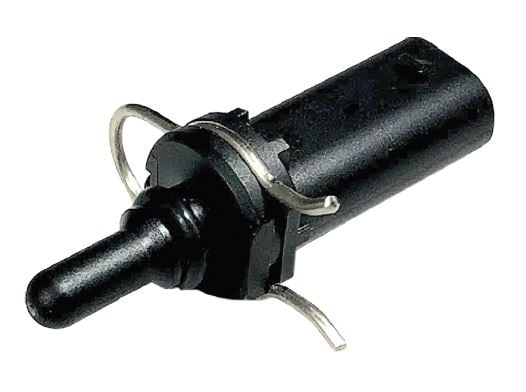

Thermometrics GE-2133 Series of General Fluid Temperature Sensors measures and monitors the temperature of a variety of fluids. The spring clip design secures the sensor in place and provides a quick means for installation and removal.

Thermometrics GE-1856 Intake Air Temperature Sensor (IAT) monitors the temperature of the incoming intake air for an engine and provides a signal output that is proportional to air temperature. This signal can be used as an input to provide a signal to an Engine Control Unit (ECU), which uses this information to adjust fuel delivery and optimize the air-to-fuel ratio to produce the most efficient combustion. GE-1856 is also suitable for air duct temperature measurement in non-condensing HVAC applications.

Thermometrics Oil Temperature Sensor (OTS) monitors the temperature of the engine oil in a vehicle and displays this measurement to the vehicle’s occupants. If a vehicle operates at too high a temperature, the engine can be in danger of damage.

Thermometrics GE-1711 / GE-1797 Engine Temperature Sensor (ETS) monitors the temperature of the coolant, oil or fuel being used in an engine.

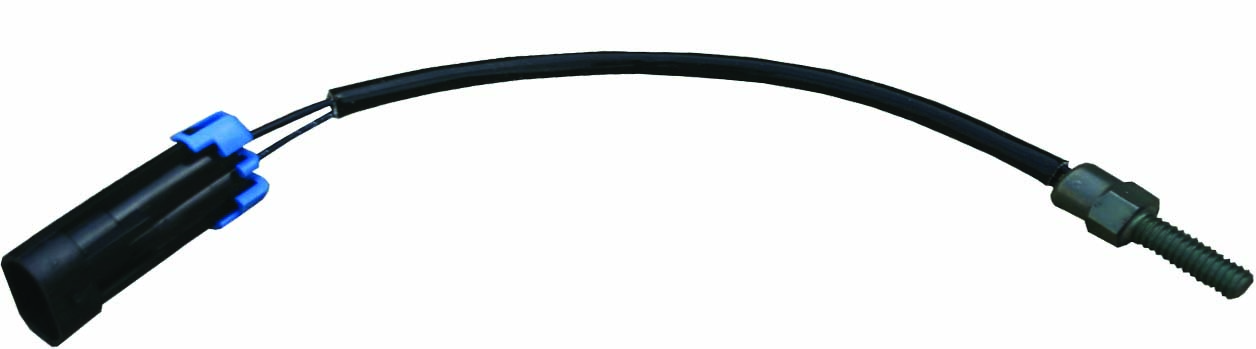

Thermometrics GE-1571 Stainless Steel Sensor with Flying Leads is designed to survive the vibration rigors of automotive, small gas engine, motorcycle and outboard engine applications. In addition to its ruggedness, this sensor offers fast response with a temperature rating of –40°C to 230°C.

Thermometrics Water Temperature Sensor (WTS) monitors the temperature of the coolant that is being pumped around the engine block to cool the engine to notify the driver of the vehicle if the engine starts to overheat. The goal is to relay an over-temperature engine temperature to the driver, so that the vehicle can be stopped and the engine switched off before the heat causes any permanent damage to the engine.

Thermometrics Exhaust Gas Recycle Temperature Sensor (EGR) is used to monitor the temperature at several locations in a diesel engine, as part of the engine control strategy. Available in both 150°C and 300°C temperature versions, the high temperature sensor is used in the exhaust gas, and the low temperature sensor is used in the intake air stream. Both are designed for fast response, optimized for thermal dissipation and suitable for high vibration and corrosive environments.

The Thermometrics Duct Temperature Sensor indicates the ambient temperature of the automatic air conditioner system in the passenger car.

Thermometrics Cylinder Head Temperature Sensor is designed to take the place of one of the cylinder head bolts on a diesel engine. The sensor’s purpose is to measure the cylinder head temperature and to signal the vehicle’s operator if an engine overheats.

Thermometrics Humidity, Pressure and Temperature Combination Sensor is a smart combination intake manifold sensor capable of providing up to five measurements, including relative humidity, temperature, manifold pressure and barmetric pressure ...

Thermometrics Active Incar Temperature Sensor (AIT) indicates in-cabin temperature measurement for vehicles that have an automated temperature control system to provide better cabin comfort and improved efficiency of the vehicle's temperature control system.

Thermometrics Accusolve Diesel Particulate Filter (DPF) Soot Sensor utilizes radio frequency technology to enable accurate measurement of accumulated soot in the DPF, providing real-time soot loading data and real time closed loop control of the DPF regeneration process.

Thermometrics Evaporator Core Temperature Sensor measures evaporator core temperature in a vehicle's HVAC system so that it doesn’t freeze over, preventing a costly repair. The ultra fast response time aids in the HVAC system efficiency by enabling the evaporator core to operate closer to 0°C without the risk of a freeze over condition.

Thermometrics Transmission Fluid Temperature Sensor (TFT) measures the temperature of transmission fluid. It provides input to the control module to modify shift patterns for smoother shifting in automatic transmissions, and also provides over-temperature protection by locking the torque convertor.

Thermometrics Fuel Temperature Sensor (FTS) is designed to measure the temperature of a vehicle's fuel and relay this information to the engine control unit, so that it can optimize the air-to-fuel mix ratio, depending on what the fuel temperature is with respect to the intake air temperature. The sensor enables the vehicle to run at maximum efficiency based on temperature.

Thermometrics Discharge Air Temperature Sensor (DAT) is used to measure the temperature of the air that is emitted from a vehicle's air ducts.

Thermometrics Evaporator Temperature Sensor is used to measure evaporator core temperature. An evaporator cools the refrigerant in the HVAC system. Since the evaporator core operates at temperatures very close to 0°C, it is important to have an accurate and robust thermistor to measure its temperature to prevent the core from freezing.

Thermometrics NTC Lead Chip Thermistors are compact in size and designed for accurate temperature measurement, control and compensation in automotive, HVAC and white goods applications.

Thermometrics Type CR1 are NK format NTC Chip Thermistors consisting of Tin (Sn) coated Alloy 52 leads with a high performance acid and moisture resistant coating. They are ideal for harsh environment applications and high volume assembly.

Thermometrics TG Series of NTC Thermistors are glass-sealed radial type thermistors with a water and oilproof design, featuring high temperature resistance and accuracy. For use in a wide variety of applications, including automotive, heating/cooling devices, boiler systems and appliances.

Thermometrics GC Series of Glass-Encapsulated NTC Chip Thermistors consists of small glass-encapsulated chip thermistors on fine diameter platinum alloy lead wires. Suitable for temperature measurement, control and compensation applications, as well as self-heated applications, such as liquid level sensing or gas flow measurement.

Thermometrics Epoxy-Coated Type NKI of Noise Immune Thermistors are newly developed, consisting of a noise immune NTC thermistor with an integrated radio frequency (RF) decoupling function, providing protection from electromagnetic interference (EMI) at the component level over a wide frequency range.

Thermometrics Epoxy Type NDP NTC Thermistors are epoxy-coated chip thermistors with PFA/PTFE insulated 0.25 mm (0.0078 in) nickel lead wires. Designed for accurate temperature measurement, control and compensation, with operation up to 155°C (311°F), they are used in automotive, HVAC and white goods applications.

Thermometrics Type NDM of Epoxy NTC Thermistors are epoxy-coated chip thermistors with bare 0.007 in (0.2 mm) tinned copper lead-wires. Designed for accurate temperature measurement, control and compensation, with operation up to 155°C (311°F), they are used in automotive, HVAC and white goods applications.

Thermometrics Epoxy Type NDL NTC Thermistors are epoxy-coated chip thermistors with bare 0.0098 in (0.25 mm) tinned copper lead-wires. Designed for accurate temperature measurement, control and compensation, with operation up to 155°C (311°F), they are used in automotive, HVAC and white goods applications.

Thermometrics Epoxy Type NDK NTC Thermistors are epoxy-coated chip thermistors with 0.2 mm (0.007 in) tinned monel lead wires. Designed for accurate temperature measurement, control and compensation, with operation up to 155°C (311°F), they are used in automotive, HVAC and white goods applications.

Thermometrics Epoxy Type MS NTC Thermistors are epoxy-coated chip thermistors with 0.254 mm (0.01 in) nickel PTFE lead wires. They are used for temperature measurement, control and compensation with a range of -50°C to 150°C (-58°F to 300°F).

Thermometrics Epoxy Type 65 NTC Interchangeable Thermistors are epoxy-coated interchangeable chip thermistors with heavy isomid insulated nickel lead wires. They provide accurate temperature measurement, control and compensation with use over a range of -40°C to 105°C (-40°F to 221°F) and high sensitivity greater than -4%/°C at 25°C (77°F).

In Part 5 of our "Thermistor Stability Benchmarking" Series, we discuss uses for Thermocon, HVAC, Discharge Air Temperature Sensors (DATS), and Boiler and Pipe Applications, along with the potential implications of reduced stability in such components

NovaSensor PT1907 is a piezoresistive sensor die that is designed for combined pressure and temperature measurements in harsh media. Pressure is applied from the backside of the die, which eliminates direct contact between the topside of the sensor circuitry and the applied media. This allows PT1907 to measure pressure and temperature in aggressive liquids and gases.

The NovaSensor NPR-101 Harsh Media Pressure Sensor is a silicon-based MEMS device using “Backside Absolute Pressure” technology designed for harsh media exposure, which eliminates the direct contact of the sensing circuitry with the applied media.

NovaSensor NPI-19 Series of Medium Pressure Sensors consists of current-driven, media-isolated pressure sensors, incorporating state-of-the-art IsoSensor technology. They are designed to operate in hostile environments while still providing the outstanding sensitivity, linearity and hysteresis of a silicon sensor.

NovaSensor NPI-19 Series of Low Pressure Sensors consists of media-isolated pressure sensors that are designed to operate in hostile environments while still providing the outstanding sensitivity, linearity and hysteresis of a silicon sensor.

The NovaSensor NPI-19 Digital I2C Pressure Sensor incorporates IsoSensor technology with I2C interface protocols, which gives the OEM user the best in price and performance.

The NovaSensor NPI-15VC Series of voltage-compensated, media-isolated High Pressure Sensors offers the performance of our current-compensated sensors with the convenience of using a voltage supply. They are designed to operate in hostile environments and yet give the outstanding sensitivity, linearity, and hysteresis of a silicon sensor.

The NovaSensor NPI-15 Series of current-driven, media-isolated High Pressure Sensors are designed to operate in hostile environments, and yet give the outstanding sensitivity, linearity, and hysteresis of a silicon sensor. They incorporate state-of-the-art IsoSensor technology, which gives the OEM user the best in price and performance.

Thermometrics Pressure & Temperature Combination Sensor provides both pressure and temperature measurements in one sensor assembly. This sensor assembly features robust internal circuit protection and sealed integral connection system, which makes it ideal for automotive, heavy equipment, agricultural, electric vehicle, and generator set applications.
