  • Thermometrics NTC Thermistors | Glass Type B - Glass-Coated Bead

Glass Coated Bead NTC Thermistor

Thermometrics NTC Thermistors | Glass Type B - Glass-Coated Bead

    Glass

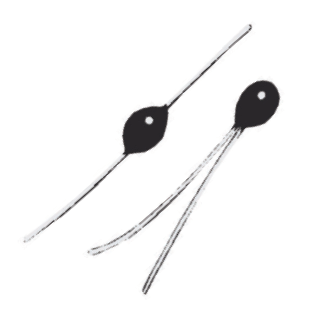

Thermometrics Glass Coated Bead NTC Thermistors Type B Series

Thermometrics Type B Glass-Coated Bead Thermistors consists of glass-coated bead thermistors on fine diameter platinum alloy lead wires. The special thin glass coatings provide hermetic seal making these thermistors unaffected by severe environmental exposures. They are suitable for most low cost temperature measurement, control and compensation, such as self-heated applications, including liquid level sensing and gas flow measurement.








  • Applications
  • Features
  • Type B05/07/10/14
  • Type B35/43
  • Product Documents
  • Part Nos.

Applications

  • Temperature measurement, control and compensation
  • Self-heated applications, such as gas chromotography, thermal conductivity analysis, liquid level sensing and gas flow measurement

Features

  • Fast thermal response times
  • Special thin glass coating provides hermetic seal
  • Unaffected by severe environmental exposures, including nuclear radiation
  • Intermittent operation to 600°C
  • Type B05/07/10/14

    Thermistor Series:  B05 B07 B10 B14
     Body Dimensions  Nominal Diamater 0.005 in (0.13 mm) 0.007 in (0.18 mm) 0.010 in (0.25 mm) 0.014 in (0.36 mm)
    Max Diameter 0.0065 in (0.17 mm) 0.0085 in (0.22 mm) 0.0115 in (0.29 mm) 0.016 in (0.417 mm)
    Max Length 0.012 in (0.30 mm) 0.014 in (0.36 mm) 0.020 in (0.510 mm) 0.030 in (0.76 mm)
    Lead Wires    Nominal Diameter 0.0007 in (0.02 mm) 0.0007 in (0.02 mm) 0.0011 in (0.03 mm) 0.0011 in (0.03 mm)
    Max Lead Length 0.312 in (7.9 mm)
    Lead Material Platinum Alloy
    Available Cuts "J" adjacent (stubs), "K" adjacent or "P" opposite
    Thermal Time Constant  Still Air @ 25°C (77°F) 0.12 seconds 0.23 seconds 0.5 seconds 1 second
    Plunge into Water 5.0 msec 7.0 msec 10 msec 15 msec
    Dissipation Constant  Still Air @ 25°C (77°F) 0.045 mW/°C 0.06 mW/°C 0.09 mW/°C 0.10 mW/°C
    Still Water @ 25°C (77°F) 0.023 mW/°C 0.3 mW/°C 0.45 mW/°C 0.50 mW/°C
    Power Rating (In Air) Max Power Rating 0.006 W 0.008 W 0.010 W 0.014 W
    100% Max to: 25°C (77°F)
    Derated to 0% at: 200°C (392°F)
    Options
    • Non-standard resistance tolerances
    • Non-standard resistance values
    • Reference temperature(s) other than 77°F (25°C)
    • Mounting in special housings or enclosures
    • Longer continuous leads
    • Welded or soldered extension leads-specify lead material, diameter, length, and insulation, if any
    • Solderable or weldable/solderable leads
    • Calibration
    • Interchangeable pairs or sets, R-vs-T curve matching
    • Special aging and conditioning for high reliability applications

    Type B35/43

    Thermistor Series:  B35 B43
     Body Dimensions  Nominal Diamater 0.035 in (0.893 mm) 0.043 in (1.1 mm)
    Max Diameter 0.043 in (1.1 mm) 0.050 in (1.32 mm)
    Max Length 0.075 in (1.9 mm) 0.100 in (2.5 mm)
    Lead Wires    Nominal Diameter 0.004 in (0.10 mm) 0.0040 in (0.102 mm)
    Max Lead Length 0.312 in (7.9 mm)
    Lead Material Platinum Alloy
    Available Cuts "J" adjacent (stubs), "K" adjacent or "P" opposite
    Thermal Time Constant  Still Air @ 25°C (77°F) 4.5 seconds 5.5 seconds
    Plunge into Water 100 msec 140 msec
    Dissipation Constant  Still Air @ 25°C (77°F) 0.30 mW/°C 0.35 mW/°C
    Still Water @ 25°C (77°F) 1.50 mW/°C 2.00 mW/°C
    Power Rating (In Air) Max Power Rating 0.035 W
    100% Max to: 150°C (302°F)
    Derated to 0% at: 300°C (572°F)
    Options
    • Non-standard resistance tolerances
    • Non-standard resistance values
    • Reference temperature(s) other than 77°F (25°C)
    • Mounting in special housings or enclosures
    • Longer continuous leads
    • Welded or soldered extension leads-specify lead material, diameter, length, and insulation, if any
    • Solderable or weldable/solderable leads
    • Calibration
    • Interchangeable pairs or sets, R-vs-T curve matching
    • Special aging and conditioning for high reliability applications

    Product Documents



    English

    Thermometrics NTC Thermistors | Glass-Coated Type B Series Bead Thermistors Datasheet

    • Download

    English

    Thermometrics Application Spotlight | Thermistor Stability Benchmarking (Part 1) - Application Spotlight

    • Download

    Thermometrics Application Spotlight | NTC Sensor Linearization

    • Download

    Sensors for Healthcare | Amphenol Advanced Sensors - Brochure

    • Download

    Thermometrics Application Spotlight | Thermistor Stability Benchmarking (Part 2) - Application Spotlight

    • Download

    Thermometrics Application Spotlight | Thermistor Stability Benchmarking (Part 3) - Application Spotlight

    • Download

    Thermometrics Application Spotlight | Thermistors FAQ - Application Spotlight

    • Download

    Thermometrics Product Spotlight | Digital Temperature Sensors versus NTC Thermistors - Product Spotlight

    • Download

    Thermometrics Application Spotlight | Thermistor Stability Benchmarking (Part 5) - Application Spotlight

    • Download

    Thermometrics Application Spotlight | Thermistor Stability Benchmarking (Part 4) - Application Spotlight

    • Download

    English

    Thermometrics | Temperature Resistance Curves - Reference Guide

    • Download

    Temperature Sensor Solutions | Thermometrics - Brochure

    • Download

    Amphenol Advanced Sensors | Connecting Your World Through Sensing Innovations - OEM Product Catalog

    • Download

    Part Nos.

    Part numbers are described in the datasheet.
