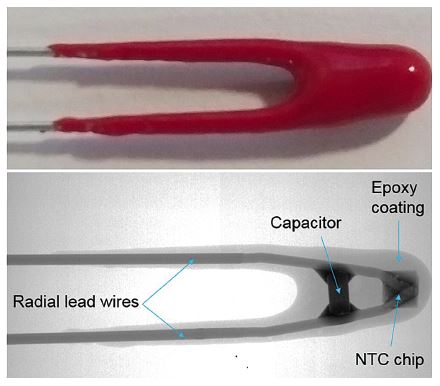

Thermometrics Epoxy-Coated Type NKI of Noise Immune Thermistors are newly developed, consisting of a noise immune NTC thermistor with an integrated radio frequency (RF) decoupling function, providing protection from electromagnetic interference (EMI) at the component level over a wide frequency range.
With increasing complexity of electric systems and density of electronic components in modern vehicles, conventional NTC thermistor sensors are vulnerable to stray electromagnetic interference causing self-heating.
Applications
- EV/HEV/PHEV Markets
- Battery Temperature Sensing
- Existing Automotive - Upgrade
- Drive Systems
- HVAC
- Air Intake / Coolant
Features
- NTC element-level EMI protection
- Fast time response
- Drop-in upgrade for existing applications
- Reduced system cost:
- Retrofit to use existing housing designs
- Eliminate shielded cables
- EMC-tested to GMW3097 / IS011452
- Range of conformal coatings available
Specifications
Resistance Values
| R25 Ω |
Material System |
B Value 25/85°C |
Code R25°C ±1% |
Code R25°C ±2% |
Code R25°C ±3% |
Code R25°C ±5% |
Code R25°C ±10% |
| 500 | 2 | 3540 ± 1% | NKI#501C2*1^ | NKI#501C2*2^ | NKI#501C2*3^ | NKI#501C2*5^ | NKI#501C2*10^ |
| 500 | 2A | 3627 ± 1% | NKI#501C2A*1^ | NKI#501C2A*2^ | NKI#501C2A*3^ | NKI#501C2A*5^ | NKI#501C2A*10^ |
| 500 | 7 | 3977± 1% | NKI#501C7*1^ | NKI#501C7*2^ | NKI#501C7*3^ | NKI#501C7*5^ | NKI#501C7*10^ |
| 1000 | 2 | 3540 ± 1% | NKI#102C2*1^ | NKI#102C2*2^ | NKI#102C2*3^ | NKI#102C2*5^ | NKI#102C2*10^ |
| 1000 | 2A | 3627 ± 1% | NKI#102C2A*1^ | NKI#102C2A*2^ | NKI#102C2A*3^ | NKI#102C2A*5^ | NKI#102C2A*10^ |
| 1000 | 7 | 3977± 1% | NKI#102C7*1^ | NKI#102C7*2^ | NKI#102C7*3^ | NKI#102C7*5^ | NKI#102C7*10^ |
| 2000 | 2 | 3540 ± 1% | NKI#202C2*1^ | NKI#202C2*2^ | NKI#202C2*3^ | NKI#202C2*5^ | NKI#202C2*10^ |
| 2000 | 2A | 3627 ± 1% | NKI#202C2A*1^ | NKI#202C2A*2^ | NKI#202C2A*3^ | NKI#202C2A*5^ | NKI#202C2A*10^ |
| 2000 | 7 | 3977± 1% | NKI#202C7*1^ | NKI#202C7*2^ | NKI#202C7*3^ | NKI#202C7*5^ | NKI#202C7*10^ |
| 2700 | 1 | 3977 ± 0.75% | NKI#272C1*1^ | NKI#272C1*2^ | NKI#272C1*3^ | NKI#272C1*5^ | NKI#272C1*10^ |
| 5000 | 4A | 3435 ± 1% | NKI#502C4A*1^ | NKI#502C4A*2^ | NKI#502C4A*3^ | NKI#502C4A*5^ | NKI#502C4A*10^ |
| 5000 | 1 | 3977 ± 0.75% | NKI#502C1*1^ | NKI#502C1*2^ | NKI#502C1*3^ | NKI#502C1*5^ | NKI#502C1*10^ |
| 10000 | 4A | 3435 ± 1% | NKI#103C4A*1^ | NKI#103C4A*2^ | NKI#103C4A*3^ | NKI#103C4A*5^ | NKI#103C4A*10^ |
| 10000 | 5 | 3740 ± 1% | NKI#103C5*1^ | NKI#103C5*2^ | NKI#103C5*3^ | NKI#103C5*5^ | NKI#103C5*10^ |
| 10000 | 1 | 3977 ± 0.75% | NKI#103C1*1^ | NKI#103C1*2^ | NKI#103C1*3^ | NKI#103C1*5^ | NKI#103C1*10^ |
| 12000 | 5 | 3740 ± 1% | NKI#123C5*1^ | NKI#123C5*2^ | NKI#123C5*3^ | NKI#123C5*5^ | NKI#123C5*10^ |
| 30000 | 8 | 3977± 1% | NKI#303C8*1^ | NKI#303C8*2^ | NKI#303C8*3^ | NKI#303C8*5^ | NKI#303C8*10^ |
| 50000 | 8 | 3977± 1% | NKI#503C8*1^ | NKI#503C8*2^ | NKI#503C8*3^ | NKI#503C8*5^ | NKI#503C8*10^ |
| *Other values available upon request. | |||||||
Ordering Information
| Replace # in RVT Table as follows: | |
| 10nF capacitor | 10NF |
| 100nF capacitor | 100NF |
| Replace * in RVT Table as follows: | |
| Loose-packed | R |
| Bandoliered | B |
| Replace Λ in RVT Table as follows: | |
| Epoxy Coating | E |
| CR1 Harsh Environment Coating | C |
| HTF1 Flexible Silicon Coating | H |
| Example Coding: | |
| NKI10NF202C2B2H | 10nF capacitor, 2k resistance, Material System 2, Bandolier, 2% tolerance, HTF1 coating |
| NKI100NF502C1R5E | 100nF capacitor, 5k resistance, Material System 1, Loose-packed, 5% tolerance, Epoxy coating |
