Thermometrics Infrared (IR) Sensors | ZTP-188MA Module

    Infrared (IR) Sensors

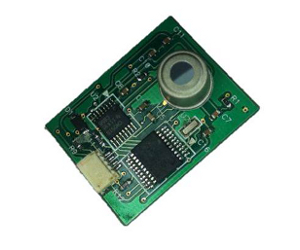

Thermometrics Thermopile Infrared Sensor Module ZTP-188MA

Thermometrics ZTP-188MA Thermopile Infrared (IR) Sensor Module presents temperature-compensated 8 linear array outputs via I2C with optics (silicon lens). It can also provide compatibility with the customer’s device without the need for recalibration. The ZTP-188MA uses 4-wire connections: two signals for I2C output, single power supply and ground. The sensor is fully-calibrated with a wide object and ambient temperature range. Lens for different fields of view are available on request.





  • Applications
  • Features
  • Specifications
  • Product Documents
  • Part Nos.

Applications

  • Air conditioners
  • Human body temperature detection

Features

  • Digital temperature output
  • I2C communication protocol
  • Fully calibrated and compensated
  • 1 x 8 array module
  • Compact size and large detection range
  • Low power consumption
  • Multi-zone detection

Specifications

Parameter Limit Min Limit Typ Limit Max Unit
Supply Voltage 4.75 5.00 5.25 V
Supply Current   4.5   mA
temperature Range 0   40 ºC
Operating Temperature 0   70 ºC
Storage Temperature -20   100 ºC
Resolution   0.1   ºC
Output Type     Digital I²C
Baud Rate   100   kBit/sec
Address Length   7   Bit
Address   0 x 58   -
input/Output High Level 0.7 VDD     V
Iput/Output Low Level     0.3VDD V

Product Documents

English

Thermometrics Infrared (IR) Sensor | ZTP-188MA Datasheet

  • Download

Thermometrics Application Spotlight | Temperature Scanning Kiosks - Application Spotlight

  • Download

English

Sensors for Healthcare | Amphenol Advanced Sensors - Brochure

  • Download

Thermometrics Application Spotlight | Temperature Sensing in Medical Devices - Application Spotlight

  • Download

English

Thermometrics | Temperature Resistance Curves - Reference Guide

  • Download

Temperature Sensor Solutions | Thermometrics - Brochure

  • Download

Amphenol Advanced Sensors | Connecting Your World Through Sensing Innovations - OEM Product Catalog

  • Download

Part Nos.

  • ZTP-188MA
