Thermometrics Sensor Assemblies | Type FL Low Profile NTC Temperature Sensor

    Temperature Sensor Assemblies

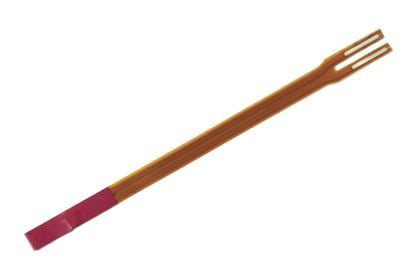

Thermometrics Low Profile NTC Temperature Sensor Type FL

Thermometrics Type FL Low Profile NTC Temperature Sensor consists of an NTC chip thermistor enclosed in a flat flexible circuit (FFC) with a thin-film protective coating. With its low profile (1.0 mm max thickness) and contour-conforming flexibility, this sensor is ideal for tight applications.



Check Distributor Stock



  • Applications
  • Features
  • Specifications
  • Product Documents
  • Part Nos.

Applications

  • EV/HEV Battery Pack Temperature Sensing

Features

  • Flexible PCB conforms to contours
  • Low profile (1.0 mm max thickness)
  • Low mass for fast response
  • AEC-Q200 qualified
  • RoHS compliant (Directive 2002/95/EC)

Specifications

Operating Temperature Range: -40°C to 80°C
Storage Temperature Range: -40°C to 80°C
R@25°C (77°F): 10KΩ (±3%)
B(25/85)°C: 3936K (±1%)
Insulation Resistance: >100MΩ at 1000V DC









Product Documents

English

Thermometrics Product Spotlight | Battery Temperature Sensing - Product Spotlight

  • Download

Thermometrics Application Spotlight | Thermistor Stability Benchmarking (Part 3) - Application Spotlight

  • Download

Thermometrics Application Spotlight | Pool and Spa Sensing Solutions - Application Spotlight

  • Download

Thermometrics Sensor Assemblies | Type FL Low Profile NTC Temperature Sensor - Product Datasheet

  • Download

English

Thermometrics | Temperature Resistance Curves - Reference Guide

  • Download

Temperature Sensor Solutions | Thermometrics - Brochure

  • Download

Amphenol Advanced Sensors | Connecting Your World Through Sensing Innovations - OEM Product Catalog

  • Download

Part Nos.

Ordering Information:

  • CTTS-203856-S02
