Telaire ChipCap 2-SIP | Humidity and Temperature Sensor

    Humidity Sensors

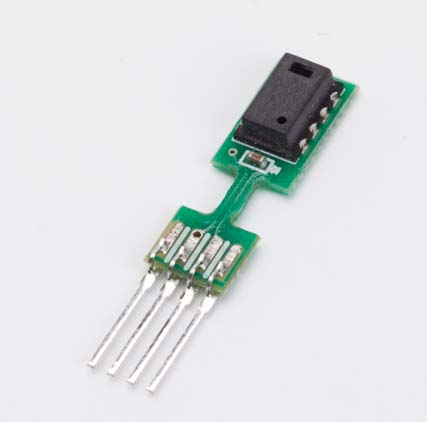

Telaire ChipCap 2-SIP Humidity and Temperature Sensor

Telaire ChipCap 2-SIP is a Single In-line Package (SIP) type of ChipCap with ready installed V-core capacitor for easy and convenient application. ChipCap offers the most advanced and cost effective humidity and temperature sensing solution for virtually any type of applications. Capacitive polymer sensor chip developed and fabricated inhouse and CMOS integrated circuit with EEPROM are integrated into one embedded system. Individually calibrated and tested, ChipCap 2-SIP performs ±2% from 20% to 80%RH (±3% over entire humidity range), and yet is simple and ready to use without further calibration or temperature compensation.



Check Distributor Stock buy



  • Applications
  • Features
  • Specifications
  • Product Documents
  • Part Nos.

Applications

  • Energy Saving HVAC Control: Air Conditioning, Refrigeration, IAQ Monitoring, Vent Fans, Home Appliances, Humi/Dehumidifiers
  • Process Control and Instrumentation: Sensor Performance
  • Medical Instruments, Handheld Devices, Weather Stations, Food Processing, Printers, RFIDs
  • Automobile & Transportation Cabin Climate Control, Defogging Control, Condensing Preventive Devise
  • Mass Quantity Application: OEM custom specification available.

Features

  • Fully-calibrated and temperature-compensated
  • Digital (I2C) output
  • Precision and accuracy (±2%RH, ±0.3°C, 14 bit )
  • Free operating voltage (min 2.3V to max 5.5V)
  • Low current compensation
  • SIP (Single In-line Package)
  • Reliable in harsh environments
  • Eliminates the reconditioning procedure needed for surface mount RH sensors
  • Field replaceable
  • Allows better air circulation and response time

Specifications

Sensor Performance:
Relative Humidity RH(%)
Resolution 14 bit (0.01 %RH)
Accuracy1 ±2.0 %RH (20~80 %RH)*
Repeatability ±0.2 %RH
Hysteresis ±1.0 %RH
Linearity <2.0 %RH
Response time3 4.0 sec (63%)
Temp Coefficient 0.05%RH/C @ 50%RH (at 10-60°C)
0.15%RH/C @ 90%RH (at 10-60°C)
Operating Range 0 ~ 100 %RH (Non-Condensing)
Long Term Drift <0.5 %RH/yr (normal condition)



Sensor Performance:
Temperature (°C)
Resolution 14 bit (0.01°C)
Accuracy1 ±0.3°C
Repeatability ±0.1°C
Response time2 5.0 sec (63%)
Operating Range -40 to 125°C
Long Term Drift <0.5°C/yr (normal condition)
  1. Accuracies measured at 25°C, 5.0V
  2. Measured at 25°C, 1m/sec airflow for achieving 63% of step from 33%RH to 90%RH
  3. Accuracies measured at 25°C, 5.0V
  4. Min 5.0 sec, Max 20 sec

Product Documents

English

Telaire ChipCap 2-SIP | Humidity and Temperature Sensor - Datasheet

  • Download

Telaire ChipCap2 | Humidity and Temperature Sensor - Application Guide

  • Download

English

Delivering Better Indoor Air Quality and Energy Efficiency - CO2, Humidity and Temperature Products | Telaire - Brochure

  • Download

Air Quality Sensors - OEM Sensor Components for Air Quality and Environmental Control | Telaire - Brochure

  • Download

Amphenol Advanced Sensors | Connecting Your World Through Sensing Innovations - OEM Product Catalog

  • Download

Part Nos.

  • CC2D23-SIP
  • CC2D25-SIP
  • CC2D23S-SIP
  • CC2D25S-SIP
  • CC2D33-SIP
  • CC2D35-SIP
  • CC2D33S-SIP
  • CC2D35S-SIP
