- Carbon Dioxide (CO2)
Carbon Dioxide (CO2) Handheld Meters
Telaire T7000 Series of Handheld Indoor Air Quality (IAQ) Monitors feature our patented absorption infrared technology to accurately measure CO2 and temperature while calculating real-time ventilation rates.
Carbon Dioxide (CO2) Sensor Modules

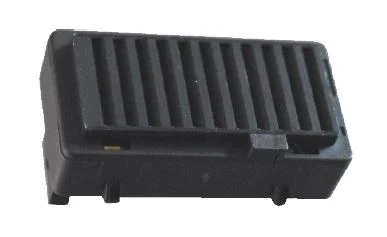

The Telaire Internal CO2 Sensor is a nondispersive infrared (NDIR) CO2 sensor that implements a single channel diffusion sampling method for automotive HVAC applications, including automatic fresh air control and safety sensing for CO2 refrigerants. Along with the patented ABC Logic™ lifetime calibration warranty, its low power consumption, compact design and simple product integration, make this an affordable gas sensing solution.
The Telaire T6613 is a small, compact CO2 Sensor Module designed to meet the volume, cost, and delivery expectations of Original Equipment Manufacturers (OEMs). The module is ideal for customers who are familiar with the design, integration, and handling of electronic components.
Telaire T6615 is a Dual Channel CO2 Sensor Module designed to integrate into existing controls and equipment for use in instumentation and applications up to 50,000 ppm. Dual channels consist of one CO2 channel that measures gas concentration and one reference channel that measures the sensor signal intensity.
The Telaire T6700 Series of CO2 Sensor Modules is designed for applications that require high accuracy in a compact package. They are ideal for use where CO2 levels need to be measured and controlled for indoor air quality and energy saving applications, such as demand control ventilation.
Telaire T6703 Series of CO2 Modules is ideal for applications where CO2 levels need to be measured to assess indoor air quality, such as residential applications. All units are factory-calibrated to measure CO2 concentration levels up to 5000 ppm.
Telaire T6713 CO2 Sensor Module is ideal for applications where CO2 levels need to be measured and controlled for indoor air quality and energy saving applications, such as demand control ventilation. All units are factory calibrated to measure CO2 concentration levels up to 5000 ppm.
Telaire T6723-8K5 CO2 Alarm Modules are designed for heater applications requiring high limit controls. They are individually factory-calibrated to trigger Alarm Signal at 8500 ppm CO2, Ventilation Warning Signal at 7500 ppm CO2, and Low Battery Warning Signal (for applications using batteries). They are compliant with the latest NF128 LNE test protocol.
Carbon Dioxide (CO2) Transmitters
Telaire T3000 Series is a range of Carbon Dioxide (CO2) Sensors designed to meet the specific needs of customers who require measuring CO2 in harsh or difficult environments. Based on a series of modules, the casing offers a number of combinations to meet the needs of range, supply voltage, and output type in various applications. Example applications include incubators, buses, refrigerators, subway stations, and railway carriages.
Telaire T3022 Series CO2 Sensor is designed specifically to meet the needs of OEM manufacturers for low cost carbon dioxide (CO2) sensor installation. It is compatible with other similar sensors in the Amphenol Advanced Sensors’ range and has I2C output from a mounted connector.
Telaire T3030 Series is a range of Carbon Dioxide (CO2) Sensors designed to meet the specific needs of customers who require measuring CO2 in harsh or difficult environments. Based on a series of modules, the casing offers a number of combinations to meet the needs of range, supply voltage, and output type in various applications.
Telaire T5100 Series of Wall Mount CO2 Transmitters offers low cost, high performance CO2 transmitters for the building controls market. It works seamlessly with building automation systems, and allows you to simply and effectively control fresh air. Demand-controlled ventilation using CO2 sensors prevents energy loss from over-ventilation while maintaining indoor air quality.
Telaire T5100-LED Series of Wall Mount CO2 Transmitters offers low cost, high performance CO2 transmitters for the building controls market.
The Telaire Ventostat 8000 Series represents a full range of wall mount carbon dioxide, humidity and temperature transmitters with display options plus active humidity and temperature outputs. The Telaire 8000 Ventostat Series provides controlled ventilation with easy installation and a clean, modern look that suits most indoor environments.
Telaire T8000-R Series of Wall Mount CO2 and Temperature Transmitters consists of low cost, high performance CO2 and temperature transmitters with relay for building controls and indoor growers markets.
Telaire Ventostat T8031 CO2 Duct Mount Transmitter is the smallest package available designed to be installed in HVAC return air ducts. It is designed for indoor air quality and energy conservation applications, offering accuracy and versatility at an affordable price.
Telaire Ventostat T8041/T8042 CO2 Duct Probe Transmitter is suitable for indoor air quality and energy conservation applications, offering accuracy and versatility at an affordable price.
Telaire Ventostat T8100 NS/NSP Series of Wall-Mount CO2 Sensors provide patented, absorption infrared gas sensing with high accuracy in a compact, low cost package.
