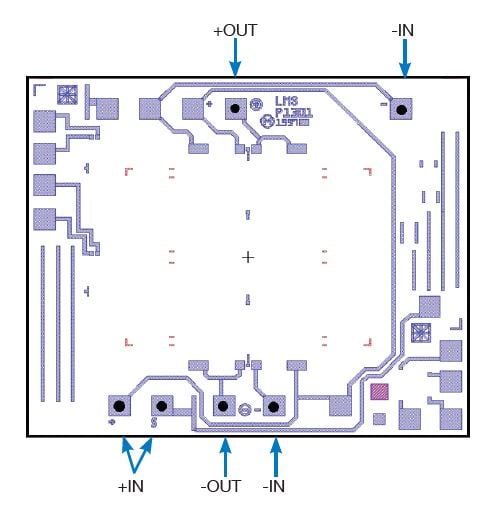

| Pressure Range |
1 |
psi |
6.9kPa |
| |
2.5 |
psi |
17.2kPa |
| |
5 |
psi |
34.5kPa |
| Electrical @ 25°C (72°F) unless noted |
| Excitation |
1.5 |
mA |
10VDC Maximum |
| Input Impedance |
5000±20% |
W |
|
| Output Impedance |
5000±20% |
W |
|
| Environmental |
| Operating Temperature Range |
-40 to 125 |
°C |
(-40°C to 257°F) |
| Storage (undiced) Temperature Range |
-55 to 150 |
°C |
(-55°C to 302°F) |
| Mechanical |
| Weight |
0.04 |
g |
(0.00008 lb) |
| Media Compatibility |
Clean dry air, non- corrosive gases |
|
|
| Performance Parameters (5) |
Value (6) |
Units |
Notes |
| Zero Offset |
±75 |
mV |
1 |
| Full Scale Output (FSO) |
80 to 120 |
mv |
1psi |
| Full Scale Output (FSO) |
140 to 300 |
mv |
2.5,5psi |
| Linearity (5psi) |
±0.25 |
%FSO |
2 |
| Linearity (1,2.5psi) |
±0.5 |
%FSO |
2 |
| Pressure Hysteresis |
±0.1 |
%FSO |
|
| Temperature Coefficient of Zero |
±30 |
µV/V/°C |
3 |
| Temperature Coefficient of Resistance |
0.36 |
%/°C |
3 |
| Temperature Coefficient of Sensitivity |
-0.21 |
%FSO/°C |
3 |
| Thermal Hysteresis of Zero |
0.25 |
%FSO |
3,7 |
- 0 KPaG for differential or gage sensors.
- Best fit straight line.
- Typical value between 0°C and 70°C (32°F and 158°F).
- Typical value over one year.
- All values measured at 25°C (77°F) and 1mA excitation, unless otherwise noted.
- 51445 TCS -.25% FSO / °C.
- 0.5% FSO for 1psi range.
|
