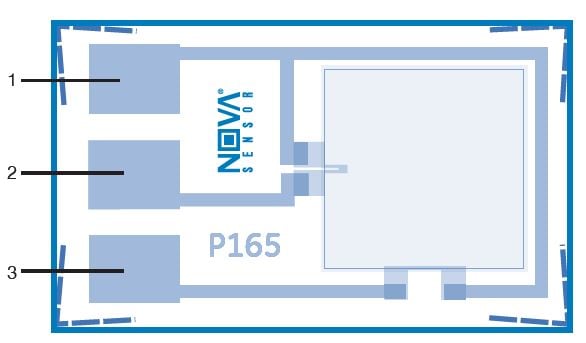

| Pressure Range |
700 to 1050 |
mmHg |
Absolute |
| Operating Temperature |
50 to 122 |
°F |
(10°C to 50°C) |
| Excitation |
1 to 8 |
Volts |
AC or DC |
| Zero Offset |
±12.5 |
mV/V |
2 |
| Sensitivity |
12 to 27 |
μV/V/mmHg |
2 |
| Linearity and Pressure Hysteresis |
±2% of reading or ±1 mmHg, whichever is greater |
%FSO |
3, 4 |
| Temperature Coefficient of Zero |
±40 |
μV/ V / °C |
Typical |
| Temperature Coefficient of Resistance |
0.14 |
% /°C |
Typical |
| Temperature Coefficient of Sensitivity |
-0.15 |
%FSO/°C |
Typical |
| Bridge Resistance |
800 ± 20% |
Ω |
|
| Symmetry |
-2 to 12 |
% |
5 |
| Burst Pressure |
4000 |
mmHg |
Absolute |
| Media Compatibility |
Clean, dry and non-corrosive gases |
|
6 |
- Values measured at 0.6 mA and 71.6°F (22°C) unless noted with 800 Ω1. Values measured at 0.6 mA and 71.6°F (22°C) unless noted with 800 Ωresistor between +Out and –IN, and –Out and –IN. Die performance willvary depending on die attach material. The die attach material shouldbe chosen to minimize package stress transmitted to the sensor die.
- Zero offset and sensitivity at 750mmHg and 25C.
- Extrapolated error at 300 mmHg by straight line through 0 and 100mmHg pressure readings
- Topside pressure.
- Symmetry is the difference between the two bridge resistor valuescompared to the average of the two bridge resistors: Rsymm=2 (R32 -R12) / (R12 + R32) * 100%
- A protective coating must cover the sensor die for use with saline andother fluids.
|
