P883 Medium and High Pressure MEMS Sensor Die

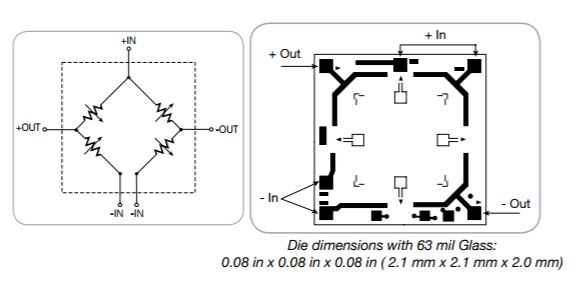

The NovaSensor P883 Medium and High Pressure MEMS Sensor Die utilizes four piezoresistors combined in Wheatstone bridge circuit. When excited by either constant voltage or constant current, the P883 Die produces a differential millivolt output signal directly proportional to the applied pressure. Available as gage (differential) or absolute, the P883 also features high sensitivity, excellent overload capability and small temperature hysteresis over a wide temperature range. The product is 100% visually-inspected and electrically-probed. Samples from each wafer are tested for resistance, sensitivity, linearity, offset, temperature coefficients and hysteresis.

General		Value
Pressure	Differential Only	5, 500 psig
	Differential and Absolute	15, 30, 70, 150, 300 psig/psia
	Absolute Only	1000, 1500, 3000, 5000, 10000, 15000 psia
Maximum Pressure		2x pressure, 5000-10000 psi
Maximum Pressure		3x pressure, 5-3000 psi
Electrostatic Damage (ESD) Class 1		MIL-STD 883 Method 3015
Operating Temperature Range		-40ºC to 125ºC (-40°F to 257°F)
Storage Temperature Range		-55ºC to 150ºC (-67°F to 302°F)
Weight		0.04 grams
Media Compatibility		Clean, Dry Air, and Non-Corrosive Gases

Electrical @ 25°C (72°F), 1.0 mA, and note 6 unless otherwise stated		Value	Notes
Excitation		1.0 mA	10 VDC max
Input Impedance		5000 ± 20% Ω
Output Impedance		5000 ± 20% Ω
Zero Offset		±10 mV/V	1
Full Scale Output (FSO)	5 to 300 psi	133 ± 33 mV	5
Full Scale Output (FSO)	1000 to 5000 psi	150 ± 30 mV	5
Linearity		± 0.25 %FSO	2, 6
Zero Pressure Repeatability		± 0.1 %FSO	1
Thermal Coefficient of Zero		± 5 µV/V/°C	3
Thermal Coefficent of Resistance		0.38 %/°C	3
Thermal Coefficient of Sensitivity		-0.19 %FSO/°C	3
Zero Thermal Repeatability		± 0.2 %FSO	4
1. 0 kPaA for absolute sensors, 0 kPaG for differential or gage sensors.1. 0 kPaA for absolute sensors, 0 kPaG for differential or gage sensors. 2. Best fit straight line. 3. Between 32°F and 158°F (0°C and 70°C), typical 4. Between -40°F and 257°F (–40°C and 125°C), typical 5. 500 psig die has FSO 100 ± 25 mV; 10000 psia die has FSO 300 ± 40 mV; 15000 psia die has FSO 240 ± 35 mV. 6. 5 psig (0.34 bar) linearity: 0.30 %FSO best fit straight line.

Part Number	Description
51322	63 mil Glass, Pressure Range: 5 Psi (0.34 Bar), Gauge
51323	63 mil Glass, Pressure Range: 15 Psi (1.03 Bar), Gauge
51324	63 mil Glass, Pressure Range: 30 Psi (2.06 Bar), Gauge
51325	63 mil Glass, Pressure Range: 70 Psi (4.82 Bar), Gauge
51326	63 mil Glass, Pressure Range: 150 Psi (10.3 Bar), Gauge
51327	63 mil Glass, Pressure Range: 300 Psi (20.6 Bar), Gauge
51328	63 mil Glass, Pressure Range: 15 Psi (1.03 Bar), Absolute
51329	63 mil Glass, Pressure Range: 30 Psi (2.06 Bar), Absolute
51330	63 mil Glass, Pressure Range: 70 Psi (4.82 Bar), Absolute
51331	63 mil Glass, Pressure Range: 150 Psi (10.3 Bar), Absolute
51332	63 mil Glass, Pressure Range: 300 Psi (20.6 Bar), Absolute
51405	63 mil Glass, Pressure Range: 500 Psi (34.5 Bar), Gauge
51588	63 mil Glass, Pressure Range: 1000 Psi (68.9 Bar), Absolute
51589	63 mil Glass, Pressure Range: 1500 Psi (103 Bar), Absolute
51590	63 mil Glass, Pressure Range: 3000 Psi (2.06 bar), Absolute
51591	63 mil Glass, Pressure Range: 5000 Psi (345 bar), Absolute
51591	63 mil Glass, Pressure Range: 10000 Psi (689 bar), Absolute
51621	63 mil Glass, Pressure Range: 15000 Psi (1034 bar), Absolute
51333	93 mil Glass, Pressure Range: 5 Psi (.34 bar), Gauge
51334	93 mil Glass, Pressure Range: 15 Psi (1.03 bar), Gauge
51335	93 mil Glass, Pressure Range: 30 Psi (2.06 bar), Gauge
51336	93 mil Glass, Pressure Range: 70 Psi (4.82 bar), Gauge
51337	93 mil Glass, Pressure Range: 150 Psi (10.3 bar), Gauge
51338	93 mil Glass, Pressure Range: 300 Psi (20.6 bar), Gauge
51339	93 mil Glass, Pressure Range: 15 Psi (1.03 bar), Absolute
51340	93 mil Glass, Pressure Range: 30 Psi (2.06 bar), Absolute
51341	93 mil Glass, Pressure Range: 70 Psi (4.82 bar), Absolute
51342	93 mil Glass, Pressure Range: 150 Psi (10.3 bar), Absolute
54343	93 mil Glass, Pressure Range: 300 Psi (20.6 bar), Absolut
