Critical Care Sensors for Surgical Temperature Assemblies

Thermometrics NTC Type JD Series of Fast Response Sensors are thermistor assemblies in a metal housing with flying wires. Typical applications include electric showers and other water appliances/systems where fast, accurate control is required.

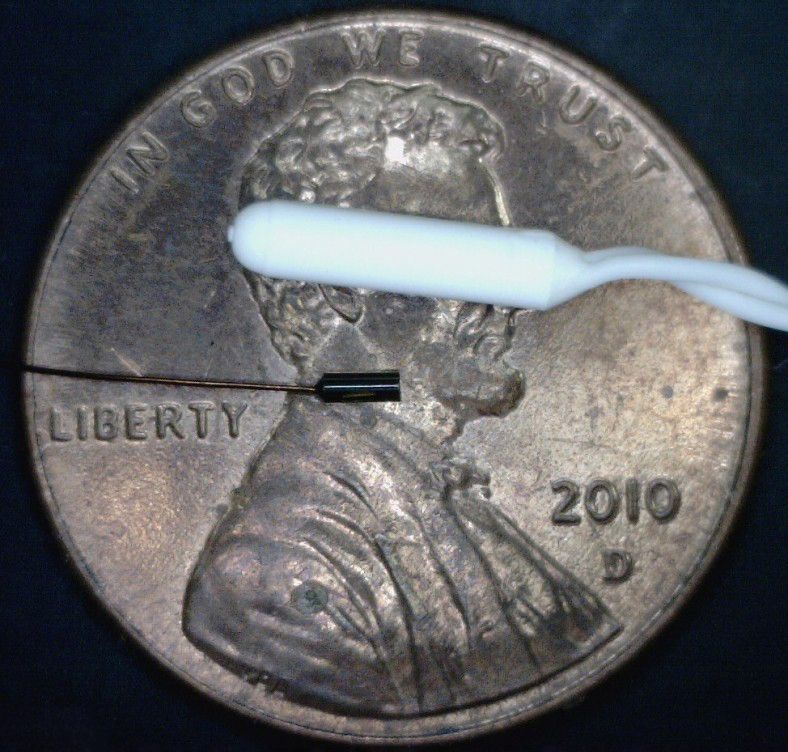

Thermometrics Biomedical Chip Thermistor Assemblies are designed for use in applications involving both intermittent and continuous patient temperature monitoring. Repeatability and fast response are essential, not only for the intermittent temperature requirements associated with oral and rectal fever measurements, but also for the continuous monitoring often necessary during induced-hypothermia and general anesthesia, or when employed in the care of infants and premature babies. Intensive care units, along with recovery rooms, have also adopted patient temperature as part of their vital sign monitoring procedures. Temperature monitoring for skin surface, tympanic, esophageal, foley catheters, and biofeedback applications has also improved due to the high stability and tight interchangeable tolerances designed into each Thermometrics’ Biomedical Sensor Assembly.

Thermometrics NTC Type AB6 Series Thermistor Assemblies consist of small thermobeads and GCs (chip-in-glass) that are welded to insulated extension leads. Thermobead and GC assemblies are used where a small thermistor must be further connected to longer leads, and for applications requiring fast response measurements in confined spaces.

Thermometrics A990 Series of Interchangeable NTC Thermistor Sub-assemblies consist of matched pairs of small, glass encapsulated thermistor beads which are connected in either series or parallel circuit configurations. These sub-assemblies are available in a variety of styles which enable them to be used in measuring the temperature of liquids or solids or to be encapsulated into larger housings such as hypodermic needles or closed end sheaths. The sub-assemblies provide interchangeable resistance-temperataure characterisitics in extremely small, fast response packagges, which are easy to handle.

Thermometrics Surface Mount Devices (SMD) Series of NTC Thermistors are intended for temperature measurement, control and compensation. They are suitable for standard soldering techniques and availabe in a range of sizes, including 0402, 0603, 0805 and 1206.

Thermometrics Type SA of Interchangeable Radial Lead NTC Thermistors consist of interchangeable thermistors with bare lead wires. They are suitable for PCB and probe mountings with high sensitivity to changes in temperature and a wide operating range of -58°F to 302°F (-50°C to 150°C).

Thermometrics Type JM of Resin-Coated Glass-Encapsulated Thermistors are glass-encapsulated NTC thermistors housed in a resin tip, which is bonded to 'figure 8' PVC leadout wires. They are resistant to moisture ingress, which makes them suitable for use in air conditioning evaporators to prevent inefficiency due to icing.

Thermometrics Type B Glass-Coated Bead Thermistors consists of glass-coated bead thermistors on fine diameter platinum alloy lead wires. The special thin glass coatings provide hermetic seal making these thermistors unaffected by severe environmental exposures. They are suitable for most low cost temperature measurement, control and compensation, such as self-heated applications, including liquid level sensing and gas flow measurement.

Thermometrics GC Series of Glass-Encapsulated NTC Chip Thermistors consists of small glass-encapsulated chip thermistors on fine diameter platinum alloy lead wires. Suitable for temperature measurement, control and compensation applications, as well as self-heated applications, such as liquid level sensing or gas flow measurement.

Thermometrics BR Series of Glass-Encapsulated Bead Thermistors consists of glass-encapsulated bead thermistors on fine diameter (alloy or platinum) lead wires. Rugged glass encapsulation provides hermetic seal and better strain relief than glass-encapsulated bead thermistors. Suitable for self-heated applications, such as liquid level sensing or gas flow measurement. Recommended for applications where the customer will perform further assembly operations.

Thermometrics Epoxy-Coated Type NKI of Noise Immune Thermistors are newly developed, consisting of a noise immune NTC thermistor with an integrated radio frequency (RF) decoupling function, providing protection from electromagnetic interference (EMI) at the component level over a wide frequency range.

Thermometrics Epoxy Type NDL NTC Thermistors are epoxy-coated chip thermistors with bare 0.0098 in (0.25 mm) tinned copper lead-wires. Designed for accurate temperature measurement, control and compensation, with operation up to 155°C (311°F), they are used in automotive, HVAC and white goods applications.

Thermometrics Epoxy Type NDK NTC Thermistors are epoxy-coated chip thermistors with 0.2 mm (0.007 in) tinned monel lead wires. Designed for accurate temperature measurement, control and compensation, with operation up to 155°C (311°F), they are used in automotive, HVAC and white goods applications.

Thermometrics Epoxy Type MS NTC Thermistors are epoxy-coated chip thermistors with 0.254 mm (0.01 in) nickel PTFE lead wires. They are used for temperature measurement, control and compensation with a range of -50°C to 150°C (-58°F to 300°F).

Thermometrics Epoxy Type C100 NTC Thermistors are epoxy-coated chip thermistors with 0.3 mm (0.012 in) bare tinned-copper lead wires. They are used for temperature measurement, control and compensation with a range of -80°C to 150°C (-112°F to 302°F) and high sensitivity greater than -4% /°C at 25°C (77°F).

Thermometrics Epoxy Type SC NTC Interchangeable Thermistors are sleeved interchangeable chip thermistors with heavy isomid insulated nickel lead wires. They provide accurate temperature measurement, control and compensation with use over a range of -40°C to 105°C (-40°F to 221°F) and high sensitivity greater than -4%/°C at 25°C (77°F), making them ideal for medical applications.

Thermometrics Type 95 of NTC Thermistors are epoxy-coated interchangeable NTC thermistor chips with bare tinned-copper, bare tinned-alloy or PTFE insulated lead wires. They are suitable for temperature measurement, control and compensation for use over a range of -112°F to 302°F (–80°C to 150°C) with interchangeability down to ±0.18°F (±0.1°C).

Thermometrics Epoxy Type 65 NTC Interchangeable Thermistors are epoxy-coated interchangeable chip thermistors with heavy isomid insulated nickel lead wires. They provide accurate temperature measurement, control and compensation with use over a range of -40°C to 105°C (-40°F to 221°F) and high sensitivity greater than -4%/°C at 25°C (77°F).

Thermometrics ZTP-315MIH Thermopile Infrared (IR) Sensor Module presents temperature-compensated single outputs via voltage output with optics (glass lens for high temperature detection). It can also provide compatibility with the customer’s device without the need for recalibration. The ZTP-315MIH uses 3-wire connections for output signal, single power supply and ground. The field of view is approx ±9 degrees for 50% normalized output with a total size is only 33 mm X 17 mm.

Thermometrics ZTP-315 Infrared (IR) Sensors consist of thermo-elements, flat infrared filter and a thermistor for temperature compensation, all in a hermetically-sealed TO-46 (18) package. Thermopile IR Sensors are used for non-contact, or infrared, surface temperature measuring. There are also a variety of filters available to help maximize performance in specific applications.

hermometrics ZTP-188ML Thermopile Infrared (IR) Sensor Module presents temperature-compensated 8 linear array outputs via I2C with optics (silicon lens). It can also provide compatibility with the customer’s device without the need for recalibration. The ZTP-188ML uses 4-wire connections: two signals for I2C output, single power supply and ground. The sensor is fully-calibrated with a wide object and ambient temperature range.

Thermometrics ZTP-188MA Thermopile Infrared (IR) Sensor Module presents temperature-compensated 8 linear array outputs via I2C with optics (silicon lens). It can also provide compatibility with the customer’s device without the need for recalibration. The ZTP-188MA uses 4-wire connections: two signals for I2C output, single power supply and ground. The sensor is fully-calibrated with a wide object and ambient temperature range.

Thermometrics Thermopile Infrared (IR) Sensors are used for non-contact surface temperature measurement.The ZTP-148SRC1 Model consists of thermo-elements, flat infrared filter and thermistor for temperature compensation, all in one hermetically-sealed TO-46 (18) sensor package.

Thermometrics ZTP-148SR Infrared (IR) Sensors consist of thermo-elements, flat infrared filter and thermistor for temperature compensation, all in one hermetically-sealed TO-46 (18) sensor package. There are a variety of filters available to maximize performance in specific applications. Thermopile IR Sensors are used for non-contact surface, or infrared, temperature measurement.

NovaSensor P330B Piezoresistive (PRT) Pressure Sensor Die offers the same superior stability and sensitivity as larger chips, but in an extremely small footprint for invasive applications where small size is critical. It has excellent measurement accuracy, which is ideal for demanding applications with restricted dimensional profiles, such as medical catheters and IC packages.

The NovaSensor P330 Series of Absolute Pressure Sensor Die, or piezoresistive pressure die, offers the same superior stability and sensitivity as in larger chips, but in an extremely small footprint for invasive applications where small size is critical.

NovaSensor P162 Medical Silicon Gage Pressure Sensor Die are piezoresistive pressure sensor die offered in a miniature 1150 x 725 mm die that is small enough for three French catheters.

The NovaSensor NPC-120 Series of Disposable Medical Pressure Sensors is specifically designed for use in disposable medical applications.

The NovaSensor NPC-100 Series of Disposable Medical Pressure Sensors is specifically designed for use in disposable medical applications.
