NovaSensor P1300 | Low Pressure Sensor Die

    Pressure Sensor Die

Nova Sensor P1300 Low Pressure Silicon Pressure Sensor Die

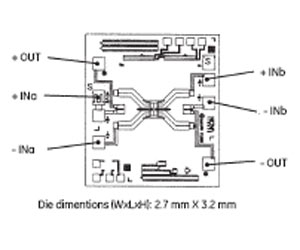

The NovaSensor P1300 Low Pressure Sensor Die are highly reliable, solid state pressure sensors, offered in a miniature 2.7 mm x 3.2 mm die. When excited with 1.5 mA, the P1300 produces a millivolt output that is proportional to input pressure. The sensor will operate with a constant voltage supply; however, the sensitivity will change –0.23%/°C. The P1300 is available as a diff erential and gauge sensor. NovaSensor’s SenStable® process provides good long-term stability and excellent repeatability. The die substrate must be connected to the positive power supply in order to maintain good long-term stability. To achieve this, +INa is connected to the sensor as well as the substrate pad, which is labeled with an “S.”



  • Applications
  • Features
  • Specifications
  • Product Documents
  • Part Nos

Applications

  • Process control systems
  • HVAC
  • Cabin pressure, respirators
  • Features

    • High reliability, solid state silicon pressure sensors
    • Standard pressure ranges: 2.5 kPa (0.3 psi) and 7 kPa (1 psi)
    • 5X Overpressure Limit

    Specifications

    Parameter Value Units Notes
    General
    Pressure Ranges 2.5 kPa >> .3 psi
      7 kPa >> 1 psi
    Maxmimum Over pressure 5X rated pressure rated pressure
    Electrical @ 25°C (72°F) unless otherwise stated
    Excitation 1.5 mA 10 VDC Max
    Input Impedance 5000 ± 20%  Ω
    Output Impedance 5000 ± 20%  Ω
    Environmental
    Temperature Range
    Operating -40 to 125 °C 40°F to 257°F
    Storage -55 to 150 °C -67°F to 320°F
    Mechanical
    Weight 0.04 grams
    Media Compatibility Clean, dry air non corrosive gases

    Product Documents

    English

    NovaSensor P1300 | Low Pressure Sensor Die - Datasheet

    • Download

    NovaSensor Application Spotlight | MEMS Pressure Sensor Solutions for Industrial Applications - Application Spotlight

    • Download

    English

    Amphenol Advanced Sensors | Connecting Your World Through Sensing Innovations - OEM Product Catalog

    • Download

    Part Nos

    Part Number Description
    51313 2.5kPaD/G (No glass)
    51314 7 kPaD/G (No glass)
    51391 2.5 kPaD/G (33 mil glass)
    51392 7 kPaD/G  (33 mil glass)
    51367 7 kPaD/G  (93 mil glass)
