Building Automation Sensors | Water Management

Thermometrics Turbidity Sensor TSW-10 measures the turbidity (amount of suspended particles) of the wash water in washing machines and dishwashers.

Thermometrics Turbidity Sensor TST-10 measures the turbidity (amount of suspended particles) of the wash water in washing machines and dishwashers.

Thermometrics Turbidity Sensor TSD-10 measures the turbidity (amount of suspended particles) of the wash water in washing machines and dishwashers.

Thermometrics Type CSP Temperature Standards are ultrastable probe thermistors that have been calibrated to an accuracy of 0.01°C. The standard unit has a thin, conformal coating of silicone rubber over the entire unit, which makes it suitable for immersion in a water bath. They are also available with stainless steel sensor housings, or they can be encapsulated into various sheaths.

Thermometrics Coolant Temperature Sensor (CTS) monitors the temperature of the coolant that is being pumped around the battery to cool the battery module of EV/PHEVs. If the battery module starts to overheat, the Coolant Temperature Sensor relays a signal to the Battery Management System (BMS). The BMS uses this information to prevent battery packs from any damage and maximize the performance.

Thermometrics Type JR NTC Chip Thermistors in Eyelet Tag are chip thermistors with insulated flexible wires and housed in an eyelet tag. They are suitable for surface temperature measurement. Typical applications include semi-conductor heatsinks and enclosure panels.

Thermometrics Waterproof IP68 Temperature Sensors include Types JI and JIC NTC Thermistors. Both types are molded onto a flexible circular cable with the option of a stainless steel housing. Wide application range. Additional options for resistance-temperature characteristics, wire lengths and housing lengths.

Thermometrics Self-Adhering Surface Temperature Sensors are designed for industrial HVACR applications, typically for placement on the external wall of a water tank or boiler reservoirs. They are also suitable for reservoir tanks working in conjunction with solar panel water heating systems.

The Thermometrics Mid-Range Temperature Probe works in a variety of temperature applications in the appliance and industrial segment.

Thermometrics Meat Probe Sensors are used to measure the temperature of cooking foods. Suitable for home appliances and microwave ovens.

Thermometrics JS8845 Integrated Pipe Clip Surface Temperature Sensor is a clip-on temperature sensor that monitors the temperature of a fluid or gas that passes through a pipe or tubing circulation system ...

Thermometrics JS8741 Integrated Pipe Clip Surface Temperature Sensor monitors the temperature of a fluid or gas that passes through a pipe or tubing circulation system ...

Thermometrics JRI Series of Noise Immune Ring Terminal Temperature Sensors consists of an NTC chip thermistor mounted in an eyelet tag for surface temperature measurement with a novel radio frequency (RF) decoupling function.

Thermometrics Inline Flow-Through Temperature Sensors monitor the temperature of a fluid that passes through it. A system control module receives this temperature reading and uses a control loop to control the overall system temperature. This could be engine temperature, heater temperature, industrial supply temperature, etc.

Thermometrics GE-1923 Outside Air Temperature Sensor (OAT) measures the temperature outside the passenger compartment of a vehicle and relays the outside air temperature to the controller of the automatic HVAC system. The controller uses this temperature to assist in controlling the interior temperature of the vehicle. The sensor also provides the vehicle occupants with temperature readings from outside the car, which is particularly useful when driving in near freezing or freezing conditions.

Thermometrics Oil Temperature Sensor (OTS) monitors the temperature of the engine oil in a vehicle and displays this measurement to the vehicle’s occupants. If a vehicle operates at too high a temperature, the engine can be in danger of damage.

Thermometrics Water Temperature Sensor (WTS) monitors the temperature of the coolant that is being pumped around the engine block to cool the engine to notify the driver of the vehicle if the engine starts to overheat. The goal is to relay an over-temperature engine temperature to the driver, so that the vehicle can be stopped and the engine switched off before the heat causes any permanent damage to the engine.

Thermometrics NTC Type JD Series of Fast Response Sensors are thermistor assemblies in a metal housing with flying wires. Typical applications include electric showers and other water appliances/systems where fast, accurate control is required.

Thermometrics Humidity, Pressure and Temperature Combination Sensor is a smart combination intake manifold sensor capable of providing up to five measurements, including relative humidity, temperature, manifold pressure and barmetric pressure ...

Thermometrics Type JW/JC of Waterproof Clip-On Pipe and Surface Sensors are NTC or PTC type chip thermistors on a ceramic/metal shoe assembly sealed in a polymer housing and provided with flexible twin cable connections. Suitable for use in conditions of high condensation and occasional immersion in water. Typical applications include gas boiler control, domestic water systems, air conditioners, radiator inlet-outlet, electric showers and vending machines.

Thermometrics Cable Probe Temperature Sensors are designed for industrial HVACR applications, typically strapped directly to the measurement surface or positioned in a ‘dry well.'

Thermometrics Water Detection Sensor detects moisture leakage in Electric Vehicle (EV) battery pack systems to warn the driver of dangerious driving conditions.

Thermometrics Adhesive Mounted Surface Sensors feature a surface mount cup for use as skin temperature sensors or on flat surfaces. They consist of small bead, disc or thermistor types <0.100" OD with shielded, jacketed or coaxial cable extension leads, as well as a maximum temperature rating of 140°F to 500°F (60°C to 260°C).

Thermometrics A990 Series of Interchangeable NTC Thermistor Sub-assemblies consist of matched pairs of small, glass encapsulated thermistor beads which are connected in either series or parallel circuit configurations. These sub-assemblies are available in a variety of styles which enable them to be used in measuring the temperature of liquids or solids or to be encapsulated into larger housings such as hypodermic needles or closed end sheaths. The sub-assemblies provide interchangeable resistance-temperataure characterisitics in extremely small, fast response packagges, which are easy to handle.

Thermometrics Transmission Fluid Temperature Sensor (TFT) measures the temperature of transmission fluid. It provides input to the control module to modify shift patterns for smoother shifting in automatic transmissions, and also provides over-temperature protection by locking the torque convertor.

Thermometrics A-1737 Motor Coil Temperature Sensor provides temperature measurement of the motor coil to detect increases in current that could lead to failures, as well as to monitor temperature of motor windings to warn of over-temperature conditions.

Thermometrics Type YQ RoHS Compliant PTC Thermistors is a range of radially-wired PTC thermistors with green silicone resin coating. Designed for general purpose over-current, over-voltage and direct over-temperature protection, these thermistors offer excellent stability and fail-safe operation.

Thermometrics Type YP PTC Thermistors consist of a range of radially-wired PTC disc thermistors with silicone coating, intended for use as a current limiting device. Available in a wide range of operating current and voltage levels with excellent stability and fail-safe operation.

Thermometrics Type YM PTC Thermistors consist of a range of radially-wired PTC disc thermistors with silicone resin coating with a wide range of operating current levels. Designed for general purpose over-current, overvoltage and direct over-temperature protection.

Thermometrics Type PTO PTC Thermistors consist of a range of radially-wired bare PTC disc thermistors for current regulation, circuit protection and temperature measurement and control. Available in a broad range of resistances, transition temperatures and voltage ratings.

Thermometrics Type PTF PTC Type Thermistors consist of a range of radially-wired bare PTC disc thermistors. They are designed for general purpose over-current and short circuit protection.

Thermometrics Surface Mount Devices (SMD) Series of NTC Thermistors are intended for temperature measurement, control and compensation. They are suitable for standard soldering techniques and availabe in a range of sizes, including 0402, 0603, 0805 and 1206.

Thermometrics Type SA of Interchangeable Radial Lead NTC Thermistors consist of interchangeable thermistors with bare lead wires. They are suitable for PCB and probe mountings with high sensitivity to changes in temperature and a wide operating range of -58°F to 302°F (-50°C to 150°C).

Thermometrics Types RL35/40/45 of Radial Lead NTC Thermistors consist of point-matched disc thermistors with bare lead wires. They are suitable for PCB and probe mountings with high sensitivity to changes in temperature and a wide operating range of -58°F to 302°F (-50°C to 150°C).

Thermometrics Type RL30 of Radial Lead NTC Thermistors consist of point-matched disc thermistors with bare lead wires. They are suitable for PCB and probe mountings with high sensitivity to changes in temperature and a wide operating range of -58°F to 302°F (-50°C to 150°C).

Thermometrics Type RL20 of Radial Lead NTC Thermistors consist of point-matched disc thermistors with bare lead wires. They are suitable for PCB and probe mountings with high sensitivity to changes in temperature and a wide operating range of -58°F to 302°F (-50°C to 150°C).

Thermometrics Type RL14 of Radial Lead NTC Thermistors consist of point-matched disc thermistors with bare lead wires. They are suitable for PCB and probe mountings with high sensitivity to changes in temperature and a wide operating range of -58°F to 302°F (-50°C to 150°C)

Thermometrics Type RL10 of Radial Lead NTC Thermistors consist of point-matched disc thermistors with bare lead wires. They are suitable for PCB and probe mountings with high sensitivity to changes in temperature and a wide operating range of -58°F to 302°F (-50°C to 150°C).

Thermometrics Type JM of Resin-Coated Glass-Encapsulated Thermistors are glass-encapsulated NTC thermistors housed in a resin tip, which is bonded to 'figure 8' PVC leadout wires. They are resistant to moisture ingress, which makes them suitable for use in air conditioning evaporators to prevent inefficiency due to icing.

Thermometrics TG Series of NTC Thermistors are glass-sealed radial type thermistors with a water and oilproof design, featuring high temperature resistance and accuracy. For use in a wide variety of applications, including automotive, heating/cooling devices, boiler systems and appliances.

Thermometrics SP Series of Ultra-Stable Probe NTC Thermistors receive additional processing to assure their continuous use in one of three temperature classes and are categorized into one of six stability groups. These thermistors may be used in all temperature measurement and control applications with the added assurance of long term stability and reliability. They are ideal for use as secondary standards in laboratories.

Thermometrics FP Series of Glass-Coated Fastip Probe NTC Thermistors consists of small diameter glass-coated thermistor beads hermetically sealed at the tips of shock resistant glass rods. The units are rugged and unaffected by severe environmental exposures, including high density nuclear radiation. The FP Series of Fastip Thermoprobes are ideally suited for high speed measurement and control of fluid temperatures, fluid levels or flow.

Thermometrics Diode Series of Glass-Encapsulated NTC Thermistors consists of a range of NTC chip thermistors in DO-35 style glass package (diode outline) with axial solder-coated copper-clad steel wires. Designed for accurate temperature measurement, control and compensation in various applications. Glass body provides hermetic seal and voltage insulation and excellent stability.

Thermometrics BR Series of Glass-Encapsulated Bead Thermistors consists of glass-encapsulated bead thermistors on fine diameter (alloy or platinum) lead wires. Rugged glass encapsulation provides hermetic seal and better strain relief than glass-encapsulated bead thermistors. Suitable for self-heated applications, such as liquid level sensing or gas flow measurement. Recommended for applications where the customer will perform further assembly operations.

Thermometrics Epoxy-Coated Type NKI of Noise Immune Thermistors are newly developed, consisting of a noise immune NTC thermistor with an integrated radio frequency (RF) decoupling function, providing protection from electromagnetic interference (EMI) at the component level over a wide frequency range.

Thermometrics Epoxy Type NDP NTC Thermistors are epoxy-coated chip thermistors with PFA/PTFE insulated 0.25 mm (0.0078 in) nickel lead wires. Designed for accurate temperature measurement, control and compensation, with operation up to 155°C (311°F), they are used in automotive, HVAC and white goods applications.

Thermometrics Type NDM of Epoxy NTC Thermistors are epoxy-coated chip thermistors with bare 0.007 in (0.2 mm) tinned copper lead-wires. Designed for accurate temperature measurement, control and compensation, with operation up to 155°C (311°F), they are used in automotive, HVAC and white goods applications.

Thermometrics Epoxy Type NDL NTC Thermistors are epoxy-coated chip thermistors with bare 0.0098 in (0.25 mm) tinned copper lead-wires. Designed for accurate temperature measurement, control and compensation, with operation up to 155°C (311°F), they are used in automotive, HVAC and white goods applications.

Thermometrics Epoxy Type NDK NTC Thermistors are epoxy-coated chip thermistors with 0.2 mm (0.007 in) tinned monel lead wires. Designed for accurate temperature measurement, control and compensation, with operation up to 155°C (311°F), they are used in automotive, HVAC and white goods applications.

Thermometrics Epoxy Type MS NTC Thermistors are epoxy-coated chip thermistors with 0.254 mm (0.01 in) nickel PTFE lead wires. They are used for temperature measurement, control and compensation with a range of -50°C to 150°C (-58°F to 300°F).

Thermometrics Epoxy Type C100 NTC Thermistors are epoxy-coated chip thermistors with 0.3 mm (0.012 in) bare tinned-copper lead wires. They are used for temperature measurement, control and compensation with a range of -80°C to 150°C (-112°F to 302°F) and high sensitivity greater than -4% /°C at 25°C (77°F).

Thermometrics Epoxy Type SC NTC Interchangeable Thermistors are sleeved interchangeable chip thermistors with heavy isomid insulated nickel lead wires. They provide accurate temperature measurement, control and compensation with use over a range of -40°C to 105°C (-40°F to 221°F) and high sensitivity greater than -4%/°C at 25°C (77°F), making them ideal for medical applications.

Thermometrics Type 95 of NTC Thermistors are epoxy-coated interchangeable NTC thermistor chips with bare tinned-copper, bare tinned-alloy or PTFE insulated lead wires. They are suitable for temperature measurement, control and compensation for use over a range of -112°F to 302°F (–80°C to 150°C) with interchangeability down to ±0.18°F (±0.1°C).

Thermometrics Epoxy Type 65 NTC Interchangeable Thermistors are epoxy-coated interchangeable chip thermistors with heavy isomid insulated nickel lead wires. They provide accurate temperature measurement, control and compensation with use over a range of -40°C to 105°C (-40°F to 221°F) and high sensitivity greater than -4%/°C at 25°C (77°F).

Thermometrics RL Series of NTC Type Cryogenic Thermistor Probes are used in liquid level detection in various cryogenic liquids. For use in the range of 25°C/77°F (room temperature) to -196°C/-320.8°F (the boiling point of Liquid Nitrogen).

In Part 5 of our "Thermistor Stability Benchmarking" Series, we discuss uses for Thermocon, HVAC, Discharge Air Temperature Sensors (DATS), and Boiler and Pipe Applications, along with the potential implications of reduced stability in such components

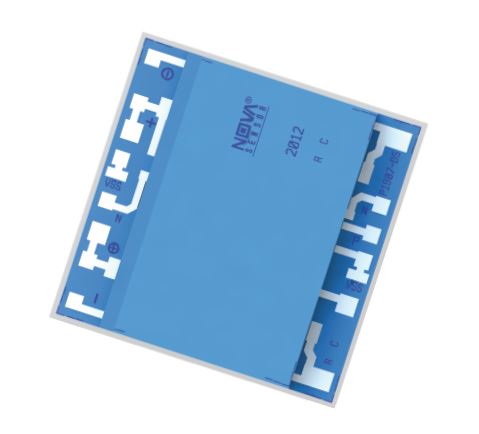

NovaSensor PT1907 is a piezoresistive sensor die that is designed for combined pressure and temperature measurements in harsh media. Pressure is applied from the backside of the die, which eliminates direct contact between the topside of the sensor circuitry and the applied media. This allows PT1907 to measure pressure and temperature in aggressive liquids and gases.

The NovaSensor NPR-101 Harsh Media Pressure Sensor is a silicon-based MEMS device using “Backside Absolute Pressure” technology designed for harsh media exposure, which eliminates the direct contact of the sensing circuitry with the applied media.

NovaSensor NPI-19 Series of Medium Pressure Sensors consists of current-driven, media-isolated pressure sensors, incorporating state-of-the-art IsoSensor technology. They are designed to operate in hostile environments while still providing the outstanding sensitivity, linearity and hysteresis of a silicon sensor.

NovaSensor NPI-19 Series of Low Pressure Sensors consists of media-isolated pressure sensors that are designed to operate in hostile environments while still providing the outstanding sensitivity, linearity and hysteresis of a silicon sensor.

The NovaSensor NPI-19 Digital I2C Pressure Sensor incorporates IsoSensor technology with I2C interface protocols, which gives the OEM user the best in price and performance.

The NovaSensor NPI-15VC Series of voltage-compensated, media-isolated High Pressure Sensors offers the performance of our current-compensated sensors with the convenience of using a voltage supply. They are designed to operate in hostile environments and yet give the outstanding sensitivity, linearity, and hysteresis of a silicon sensor.

The NovaSensor NPI-15 Series of current-driven, media-isolated High Pressure Sensors are designed to operate in hostile environments, and yet give the outstanding sensitivity, linearity, and hysteresis of a silicon sensor. They incorporate state-of-the-art IsoSensor technology, which gives the OEM user the best in price and performance.

Modus W Series of HVAC Differential Pressure Transmitters are designed to measure low differential pressures of liquids or gases. A wide selection of standard pressure ranges and electrical ratings is available. These transmitters are an excellent choice for many HVAC, process and automation monitoring requirements.
