NTC Thermistors | Epoxy Type

Thermometrics NTC Thermistors | Epoxy Type NDP

    Epoxy

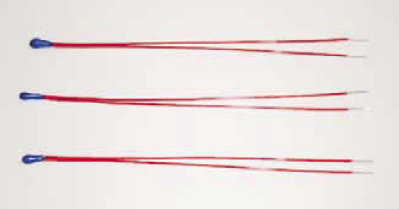

Thermometrics NTC Thermistors Epoxy Type NDP Series

Thermometrics Epoxy Type NDP NTC Thermistors are epoxy-coated chip thermistors with PFA/PTFE insulated 0.25 mm (0.0078 in) nickel lead wires. Designed for accurate temperature measurement, control and compensation, with operation up to 155°C (311°F), they are used in automotive, HVAC and white goods applications.





  • Applications
  • Features
  • Specifications
  • Product Documents
  • Part Nos.

Applications

  • Automotive Applications
  • HVAC Applications
  • White Goods Applications



Features

  • Tight tolerances on resistance and B value
  • Small body size
  • Fast response
  • Epoxy resin provides voltage insulation
  • RoHS compliant
  •

    Specifications

    Operating Temperature Range (Minimum) -40°C to 155°C (-40°F to 311°F)
    Thermal Time Constant <10 seconds
    Dissipation Factor 1.5 mW/K
    Voltage Insulation 500 VDC
    Wire Insulation Cadmium free red PTFE/PFA
    Resistance vs. Tolerance See datasheet.

    Options:

  • Other resistance values in the range of 0°C (32°F) up to the maximum operating temperature
  • Alternative reference temperatures
  • Wire lengths 1.181 in to 23.62 in (30 mm to 600 mm) (±1 mm or ±2%, whichever is the greater)
  • Other wire materials
  • Other wire insulation colors
  •

    Product Documents

    English

    Thermometrics NTC Thermistors | Epoxy Type NDP - Datasheet

    • Download

    English

    Thermometrics Application Spotlight | Thermistor Stability Benchmarking (Part 1) - Application Spotlight

    • Download

    Thermometrics Application Spotlight | NTC Sensor Linearization

    • Download

    Sensors for Healthcare | Amphenol Advanced Sensors - Brochure

    • Download

    Thermometrics Application Spotlight | Thermistor Stability Benchmarking (Part 2) - Application Spotlight

    • Download

    Thermometrics Application Spotlight | Thermistor Stability Benchmarking (Part 3) - Application Spotlight

    • Download

    Thermometrics Application Spotlight | Thermistors FAQ - Application Spotlight

    • Download

    Thermometrics Product Spotlight | Digital Temperature Sensors versus NTC Thermistors - Product Spotlight

    • Download

    Thermometrics Application Spotlight | Thermistor Stability Benchmarking (Part 5) - Application Spotlight

    • Download

    Thermometrics Application Spotlight | Thermistor Stability Benchmarking (Part 4) - Application Spotlight

    • Download

    English

    Thermometrics | Temperature Resistance Curves - Reference Guide

    • Download

    Temperature Sensor Solutions | Thermometrics - Brochure

    • Download

    Amphenol Advanced Sensors | Connecting Your World Through Sensing Innovations - OEM Product Catalog

    • Download

    Part Nos.

    • NDP102C2R1
    • NDP102C2R2
    • NDP102C2R3
    • NDP102C2R5
    • NDP102C2R10
    • NDP202C2R1
    • NDP202C2R2
    • NDP202C2R3
    • NDP202C2R5
    • NDP202C2R10
    • NDP502C2R1
    • NDP502C2R2
    • NDP502C2R3
    • NDP502C2R5
    • NDP502C2R10
    • NDP102C2AR1
    • NDP102C2AR2
    • NDP102C2AR3
    • NDP102C2AR5
    • NDP102C2AR10
    • NDP202C2AR1
    • NDP202C2AR2
    • NDP202C2AR3
    • NDP202C2AR5
    • NDP202C2AR10
    • NDP502C2AR1
    • NDP502C2AR2
    • NDP502C2AR3
    • NDP502C2AR5
    • NDP502C2AR10
    • NDP272C1R1
    • NDP272C1R2
    • NDP272C1R3
    • NDP272C1R5
    • NDP272C1R10
    • NDP502C1R1
    • NDP502C1R2
    • NDP502C1R3
    • NDP502C1R5
    • NDP502C1R10
    • NDP103C1R1
    • NDP103C1R2
    • NDP103C1R3
    • NDP103C1R5
    • NDP103C1R10
    • NDP303C1R1
    • NDP303C1R2
    • NDP303C1R3
    • NDP303C1R5
    • NDP303C1R10
    • NDP503C1R1
    • NDP503C1R2
    • NDP503C1R3
    • NDP503C1R5
    • NDP503C1R10
    • NDP103C4AR1
    • NDP103C4AR2
    • NDP103C4AR3
    • NDP103C4AR5
    • NDP103C4AR10
    • NDP123C5R1
    • NDP123C5R2
    • NDP123C5R3
    • NDP123C5R5
    • NDP123C5R10
