Cable Probe Temperature Sensors

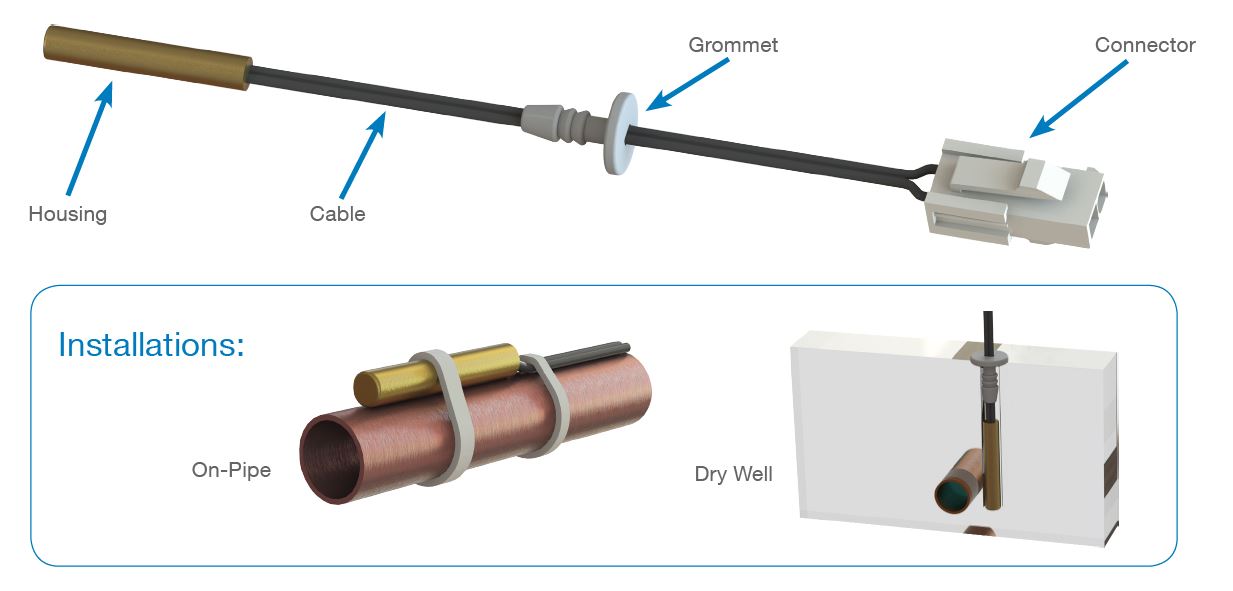

Thermometrics Cable Probe Temperature Sensors are used in a broad range of industrial applications, including water heating, refrigeration and air conditioning systems, consisting of resin-potted NTC thermistors encapsulated within metal housings, extension cables and connector systems. They are typically strapped directly to the measurement surface or positioned in a “dry well” where a grommet or cable tie is used to secure the sensor in position.

Thermometrics_Cable_Probe_Temperature_Sensors-diagram



Part No. Housing
Material
Housing
Dimensions (mm)
Resistance
at (Tref) / W
B (25/85) / K Cable
Description
Cable
Length (mm)
JS4710 Brass 5x30 12,000 (25)
950 (100) ±5%
3740 ±1% PVC
(single insulation)
300
JS4833 Brass 5x30 10,000 (25) ±1% 3977 ±0.75% PVC
(single insulation)
1485
JS4832 Brass 5x30 10,000 (25) ±1% 3977 ±0.75% PVC
(single insulation)
1235



Part No. Connector
System
Grommet Max
Temp °C
V(ac) Strength/ V
(at 1mA)
IP
Rating
JS4710  Molex 5559 Yes 105 750 IP66
JS4833 Polehousing
CTH1300/2
Yes 105 1500 IP66
JS4832 Polehousing
CTH1300/2
Yes 105 1500 IP66
