  • New! T3022 Series - T6713 CO2 Sensor with IP65 Protection | By Telaire
Details
25 March 2019
Share:  facebook  linked in

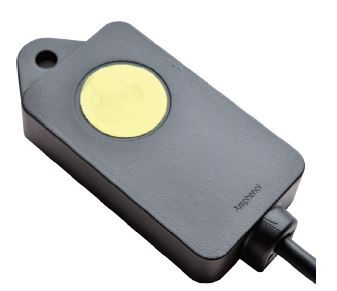

Telaire T3022 - CO2 Sensor with IP65 Protection

New!
T3022 Series - T6713 CO2 Sensor with IP65 Protection

The Telaire T3022 Series CO2 Sensor is designed specifically to meet the needs of OEM manufacturers for low cost carbon dioxide (CO2) sensing. Allows for simple installation with 5V input and I2C digital output.

>> Visit Product Page

For full sensor specifications, see Telaire T6713.



Applications

  • Air-air heat exchanger volume control
  • Residential demand-based ventilation
  • Self-contained ventilation system control
  • HVAC control

Features

  • IP65 protection
  • Flexible CO2 sensor platform designed to interact with other microprocessor devices
  • Eliminates the need for calibration in most applications with Telaire’s patented ABC Logic™ software
  • Lifetime calibration warranty
  • Easy mounting with external tab
  • I2C Digital output
  • Non-Dispersive Infrared (NDIR) measuring technology (T6713)
  • Shipped factory-calibrated

Ordering Informaton

Please discuss your specific needs with the Amphenol Advanced Sensors account management team as other configurations are possible; some combinations are already in production.

Derivatives include different outputs and different calibration levels.



Part Number Output Operating Voltage
T3022-1-5K-5-1 I2C Digital 1.0m cable length, JST Connector
T3022-1-5K-5 I2C Digital  1.8m cable length, JST Connector
T3022-1-5K-1-MX I2C Digital 1.0m cable length, Molex Connector



Contacts   Email Address
Sample Requests: This email address is being protected from spambots. You need JavaScript enabled to view it.
Technical Support: AMER
This email address is being protected from spambots. You need JavaScript enabled to view it.
  EMEA/ASIA
This email address is being protected from spambots. You need JavaScript enabled to view it.






>> Download PDF Version





  • Additional Product Documents

Additional Product Documents

English

Telaire T67XX CO2 Sensor Module - Application Note

  • Download

Telaire Product Spotlight | T3022 Series - CO2 Sensors for OEM Installation - Product Spotlight

  • Download

Telaire Application Spotlight | Carbon Dioxide (CO2) Sensing in Railway Cars - Application Spotlight

  • Download

Telaire T3022 Series | IP65 CO2 Sensors for OEM Installation - Product Datasheet

  • Download

Telaire Application Spotlight | Carbon Dioxide (CO2) Measurement and Control in Cell Incubators - Application Spotlight

  • Download
