NovaSensor NPP-301 Series | Surface Mount Pressure Sensors

    Pressure Sensors

Nova Sensor NPP-301 Surface Mount Pressure Sensors

The NovaSensor NPP-301 Series features silicon pressure sensors in surface mount packages. An ultra-small Silicon Fusion Bonded (SFB), ultra-high stability SenStable® piezoresistive chip from NovaSensor is placed in a plastic package that exploits high volume, leadframe package technology to bring forth a low-cost sensor alternative to the OEM user.

The NPP-301 Series produces a voltage output that is linearly proportional to the input pressure. The user can provide NPP Series products with signal conditioning circuitry to amplify the output signal or to maximize OEM value added. The NPP-301 Series is compatible with most non-corrosive gases and dry air.



Check Distributor Stock



  • Applications
  • Features
  • Specifications
  • Product Documents
  • Part Nos.

Applications

  • Automotive tire pressure
  • Pneumatic controls
  • Pressure switches and controllers
  • Altimeters and barometers
  • Cable leak detection
  • Consumer appliances
  • Portable gauges and manometers
  •

    Features

    • Low-cost surface mount package: SO-8
    • Wide operating temperature range: -40°F to 257°F (–40°C to 125°C)
    • Static accuracy <0.20% FSO maximum
    • Suitable for automated component assembly
    • Four element Wheatstone bridge configuration for circuit design flexibility
    • Solid-state reliability
    • 100, 200 and 700 kPa absolute pressure ranges available

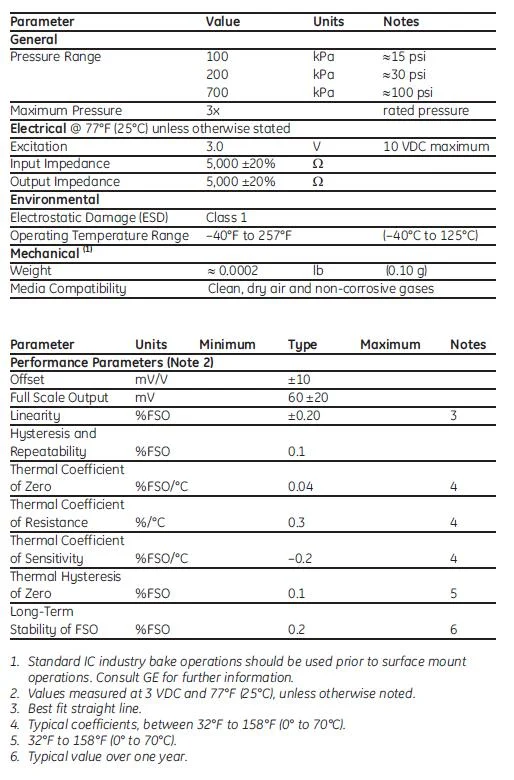

    Specifications

    NPP-301-Specs-Tb1

    Product Documents

    English

    NovaSensor NPP-301 | Surface Mount Pressure Sensor - Datasheet

    • Download

    NPP-301 Frequently Asked Questions - NovaSensor Application Note

    • Download

    NovaSensor Product Spotlight | NPP Surface Mount Pressure Sensor - Product Spotlight

    • Download



    English

    Amphenol Advanced Sensors | Connecting Your World Through Sensing Innovations - OEM Product Catalog

    • Download

    Part Nos.

    Part Number Description
    NPP-301A-100A 5 psia, non-ported
    NPP-301A-200A 30 psia, non-ported
    NPP-301A-700A 100 psia, non-ported
    NPP-301A-100AT 15 psia, non-ported
    NPP-301A-200AT 30 psia, non-ported
    NPP-301A-700AT 100 psia, non-ported
    NPP-301B-100A 15 psia, ported
    NPP-301B-200A 30 psia, ported
    NPP-301B-700A 100 psia, ported
    NPP-301B-100AT 15 psia, ported
    NPP-301B-200AT 30 psia, ported
    NPP-301B-700AT 15 psia, ported
