NPC-1210 Series of Low/Medium Pressure Sensors

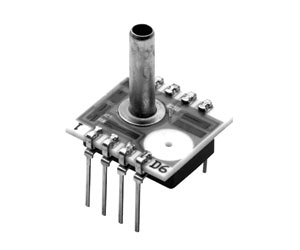

The NovaSensor NPC-1210 Series of Low/Medium Pressure Sensors provides a cost effective solution for applications that require calibrated performance over a wide temperature range. Packaged in a dual-in-line configuration, the NPC-1210 Series is intended for printed circuit board mounting. Optional pressure port and lead configurations provide superior flexibility in low profile applications where pressure connection orientation is critical.

The NPC-1210 series is based on NovaSensor’s advanced SenStable® piezoresistive sensing technology. Silicon micromachining techniques are used to ion implant piezoresistive strain gages into a Wheatstone bridge configuration. The NPC-1210 Series offers the added advantage of superior temperature performance over the temperature compensated range of 0°C to 60°C (32°F to 140°F). A gain set resistor is included to normalize the FSO for field interchangeability.

Pressure Ranges	Medium Pressure Sensors	Low Pressure Sensors
Gauge and Differential:	5 psi (34 kPa, 0.34 bar) 15 psi (100 kPa, 1.0 bar) 30 psi (210 kPa, 2.1 bar) 50 psi (340 kPa, 3.4 bar) 100 psi (690 kPa, 6.9 bar)	10 in H20 (2.5 kPa, 0.025 bar) 1 psi (6.9 kPa, 0.069 bar)
Absolute:	15 psi (100 kPa, 1.0 bar) 30 psi (210 kPa, 2.1 bar) 50 psi (340 kPa, 3.4 bar) 100 psi (690 kPa, 6.9 bar)
*For other pressure ranges, please contact NovaSensor.

Parameter	Medium Pressure Sensors	Low Pressure Sensors
Operating Temperature Range	-40°C to 125°C (-40°F to 257°F)	-40°C to 125°C (-40°F to 257°F)
Compensated Temperature Range	0°C to 60°C (32°F to 140°F)	0°C to 60°C (32°F to 140°F)
Storage Temperature Range	-55°C to 150°C (-67°F to 302°F)	-55°C to 150°C (-67°F to 302°F)
Weight	2.5 g (0.005lb)	2.5 g (0.005lb)
Media Compatibility	Compatible with exposed materials⁷	Compatible with exposed materials⁷
Positive Differential and Gauge Ports	Dry gases only	Dry gases only
Absolute and Negative Differential Ports	Dry gases only	Dry gases only

Performance Parameter¹	Units	Minimum	Typical	Maximum	Notes
FS Output (FSO)	mV	75	100	150	2, 3
Zero Pressure Output	mV	-2	—	2	3
Linearity	%FSO	-0.1	—	0.1	4, 8
Pressure Hysteresis	%FSO	-0.1	—	0.1
Input Impedance	Ω	2500	4000	6000
Output Impedance	Ω	4000	5000	6000
Thermal Accuracy–Span	%FSO	-0.5	—	0.5	3, 5, 8
Thermal Accuracy–Zero	%FSO	-0.5	—	0.5	3, 5, 8
Temperature Coefficient– Resistance	%/°C	—	0.2	—	5
Thermal Hysteresis–Zero	%FSO	—	0.1	—	5
Input Excitation	mA	—	1.5	2
Pressure Overload	Rated	—	—	3X	6, 9
Supply current = 1.5 mA and ambient temperature = 77°F (25°C), unless otherwise noted. Gauge and differential pressure devices are calibrated by applying pressure to the positive differential port (P2) and venting to atmosphere the reference port (P1). Output span of unamplified sensor. Compensation resistors are an integral part of the sensor package; no additional external resistors are required. Pins 7 and 8 must be kept open. The NPC-1210 is interchangeable only when used with the gain set resistor shown in the schematic diagram. Maximum gain-set resistor mismatch is 2%. Best fit straight line. Temperature Range: 32°F to 140°F (0°C to 60°C), reference to 77°F (25°C). 3X or 200 psi (13.78 bar) maximum, whichever is less. Exposed materials are pyrex, ceramic, silicon, epoxy, RTV, and stainless steel. 5 psi (0.34 bar) spec.: Linearity: 0.25 ±%FSO, TC-span: 0.75 ±%FSO, TC-zero: 0.75 ±%FSO. otherwise noted. Port 1 is limited to 60 PSIG for differential and absolute pressure sensors. Contact factory for 50 PSIA/D and 100 PSIA/D units.

When ordering, please specify part number per code specified below:

Medium Pressure Sensors
NPC-1210	Code	Pressure Range	Code	Type	Code	Lead Configurations	Code	Tube Options
	005 015 30 050 100	5 psi (34 kPa, 0.34 bar) 15 psi (100 kPa, 1.0 bar) 30 psi (210 kPa, 2.1 bar) 50 psi (340 kPa, 3.4 bar) 100 psi (690 kPa, 6.9 bar)	D A G	Differential Absolute Gauge	1 3	Up Down	L S N	Long Short None*
Example: NPC-1210	-005		-D		-1		-L
*Order NPC-1210-XXXG-XN in place of NPC-1210-XXXD-XN.

Low Pressure Sensors
NPC-1210	Code	Pressure Range	Code	Type	Code	Lead Configurations	Code	Tube Options
	10W 001	10 in H2O (25 mbar) 1 psi (69 mbar)	D G	Differential Gauge	1 3	Up Down	L S	Long Short
Example: NPC-1210	-005		-D		-1		-L
