NovaSensor P562 | Medical Pressure Die

    Pressure Sensor Die

Nova Sensor P562 Medical Silicon Pressure Die

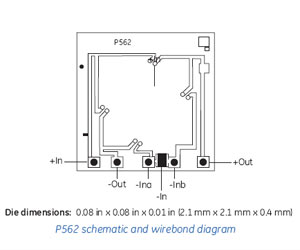

The NovaSensor P562 Medical Silicon Pressure Die is a piezoresistive pressure sensor that is specifically designed for medical applications. Low linearity errors and low input and output impedance make the P562 an industry standard for disposable pressure sensor die. The sensor die is radiation tolerant for newer sterilization methods. Wire bonds are located on one side to minimize package width for DPT’s and IUP’s. Choose an open bridge wirebond configuration depending on your compensation circuit. Sensitivity can be easily scaled with external circuitry to meet the AAMI standard of 5 µV/V/mmHg sensitivity.





  • Applications
  • Features
  • Specifications
  • Product Documents
  • Part Nos.

Applications

  • Disposable pressure transducer (DPT)
  • Intrauterine pressure (IUP)
  • Biomedical instruments
  • Infusion pumps

Features

  • Highly reliable, silicon pressure sensor
  • Low cost for disposable applications
  • 0 to 100 mmHg pressure range
  • Radiation tolerant design
  • Linearity errors less than 1% in physiological pressure range

Specifications

Parameter Value Units Notes
General
Pressure Range 100 mmHg -1.9 psi (-0.13 bar)
Maximum Over pressure 125 (9 bar) psi Topside pressure
Electrical @ 72°F (25°C) unless noted
Excitation 3.0 mA 3 VDC Maximum
Input Impedance 305 to 400 Ω
Output Impedance 305 to 400` Ω
Environmental
Temperature Range
Operating 32 to 158 °F (0°C to 70°C)
Storage -13 to 185 °F (-25°C to 85°C)
Mechanical
Weight 0.00004 lb (0.02 grams)
Media Compatibility Clean, dry air; non-corrosive gases

Product Documents

English

NovaSensor P562 | Medical Silicon Pressure Sensor Die - Datasheet

  • Download

NovaSensor Application Spotlight | MEMS Pressure Sensor Solutions for Industrial Applications - Application Spotlight

  • Download

English

Amphenol Advanced Sensors | Connecting Your World Through Sensing Innovations - OEM Product Catalog

  • Download

Part Nos.

Part Number Description
51279 100 mmHg Sensor
