NovaSensor P1302 | Low Pressure Sensor Die

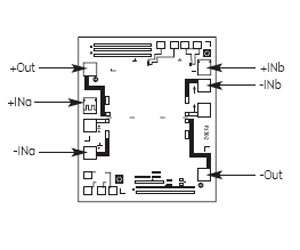

Nova Sensor P1302 Low Pressure Silicon Pressure Sensor DieThe P1302 piezoresistive pressure sensors are offered in a miniature 0.11 in x 0.13 in (2.7 mm x 3.2 mm) die. When excited with 1.5 mA, the P1302 produces a millivolt output that is proportional to input pressure. The P1302 is available as a differential and gage sensor. With NovaSensor's SenStable® process, the P1302 will provide very good long-term stability and excellent reapeatability.



  • Applications
  • Features
  • Specifications
  • Product Documents
  • Part Nos.

Applications

  • Process control systems
  • HVAC
  • Respirators
  • Cabin pressure
  • Features

    • High reliability, solid state silicon pressure sensors
    • Available in differential version
    • Standard pressure ranges: 10 in H2O (2.5 kPa), 1 psi (7 kPa)
    • Nonlinearity < 0.25% FSO
    • 5X overpressure limit

    Specifications

    Parameter Value Units Notes
    General
    Pressure Range 10 in H2O 2.5 kPa
      1 psi 7 kPa
    Electrical @ 77°F (25°C) unless noted
    Excitation 1.5 mA 10 VDC Maximum
    Input Impedance 5000 ± 20% Ω
    Output Impedance 5000 ± 20% Ω
    Environmental
    Operating Temperature Range -40 to 257 °F (-40°C to +125°C)
    Storage  Temperature Range (undiced) -67 to 302 °F (-55°C to +150°C)
    Mechanical
    Weight 0.00008 lb (0.04 g)
    Media Compatibility Clean dry air, non-corrosive gases

    Product Documents

    English

    NovaSensor P1302 | Low Pressure Silicon Pressure Sensor Die - Datasheet

    • Download

    NovaSensor Application Spotlight | MEMS Pressure Sensor Solutions for Industrial Applications - Application Spotlight

    • Download

    English

    Amphenol Advanced Sensors | Connecting Your World Through Sensing Innovations - OEM Product Catalog

    • Download

    Part Nos.

    Part Number Description
    51317 2.5 KPa D/G (10 in H2O), no glass
    51318 7 KPa D/G (1 psi), no glass
    51444 7 KPa D/G (1 psi), 93 mil glass
    51445 2.5 KPa D/G, 93 mil glass
    51433 2.5 KPa D/G, no glass
